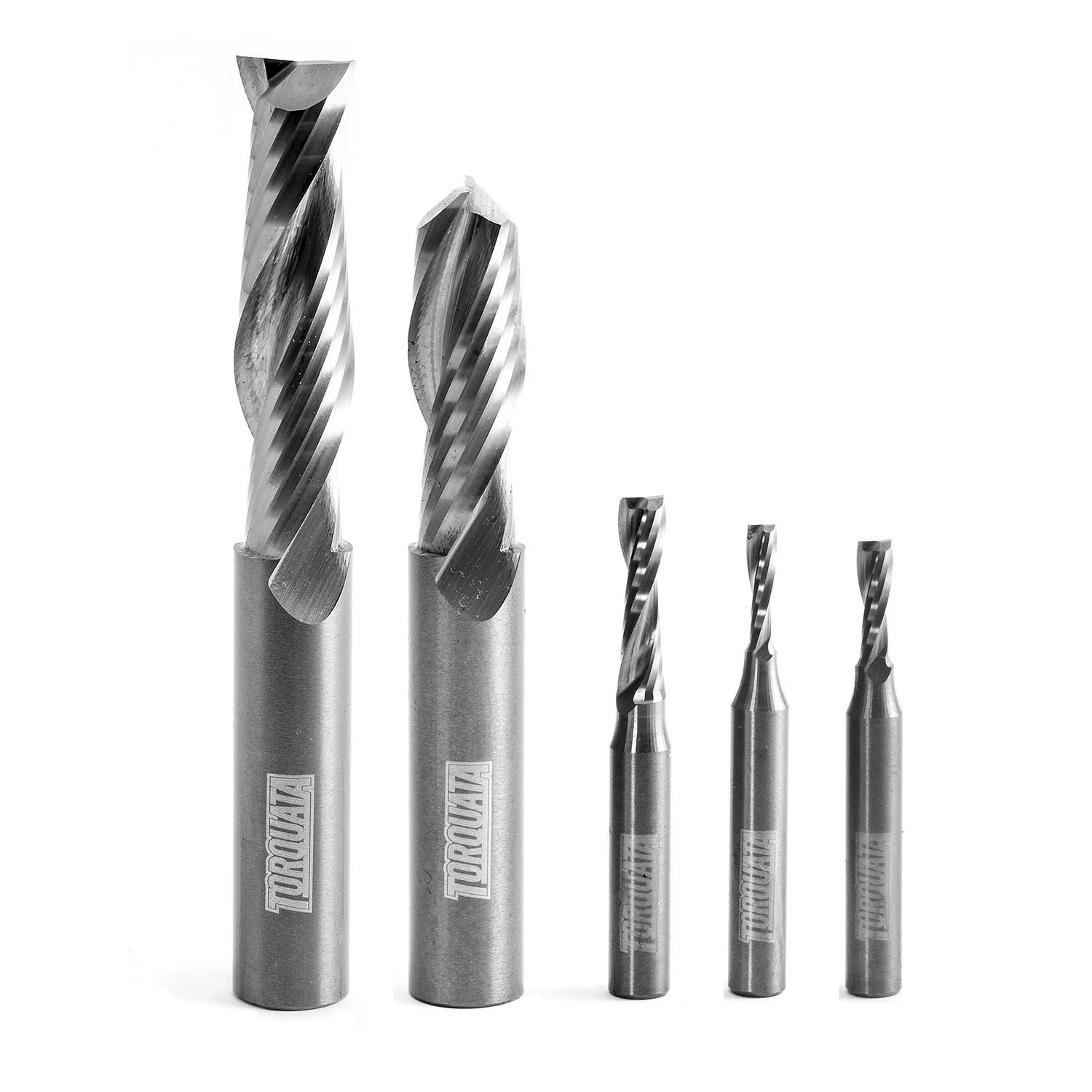

Torquata Spiral Upcut Router Bits

Torquata solid carbide spiral bits begin life as extra-hard C4 micro grain carbide, ground using sophisticated 6-Axis C.N.C. to grind their spiral geometry.  The precision of the spiral and hardness of carbide allows for a very sharp edge and typically longer edge sharpness. A straight bit can’t compete with that. The geometry and top point allow you to plunge into your work like a drill, using a constant shearing action when making the cuts.

Used handheld, upcut bits eject the waste up towards the shank with a smoother edge on the bottom of the cut, Used in a table, upcut bits eject waste under the table with a smoother top edge.

If you’re looking for the opposite chip ejection and edge finish you need to check out the Downcut Spiral Bit range.

Spiral bits work perfectly on all forms of solid timber, along, across and on end-grain and leave razor-sharp edges on melamine, veneered boards, ply, MDF and chipboard.

Watch the video below (or on our ) for a full rundown and explanation of these amazing router bits!

Product Code	Shank Size	Cutting Diameter Metric	Cutting Diameter Imperial	Cutting Height Metric	Cutting Height Imperial	Overall Length Metric

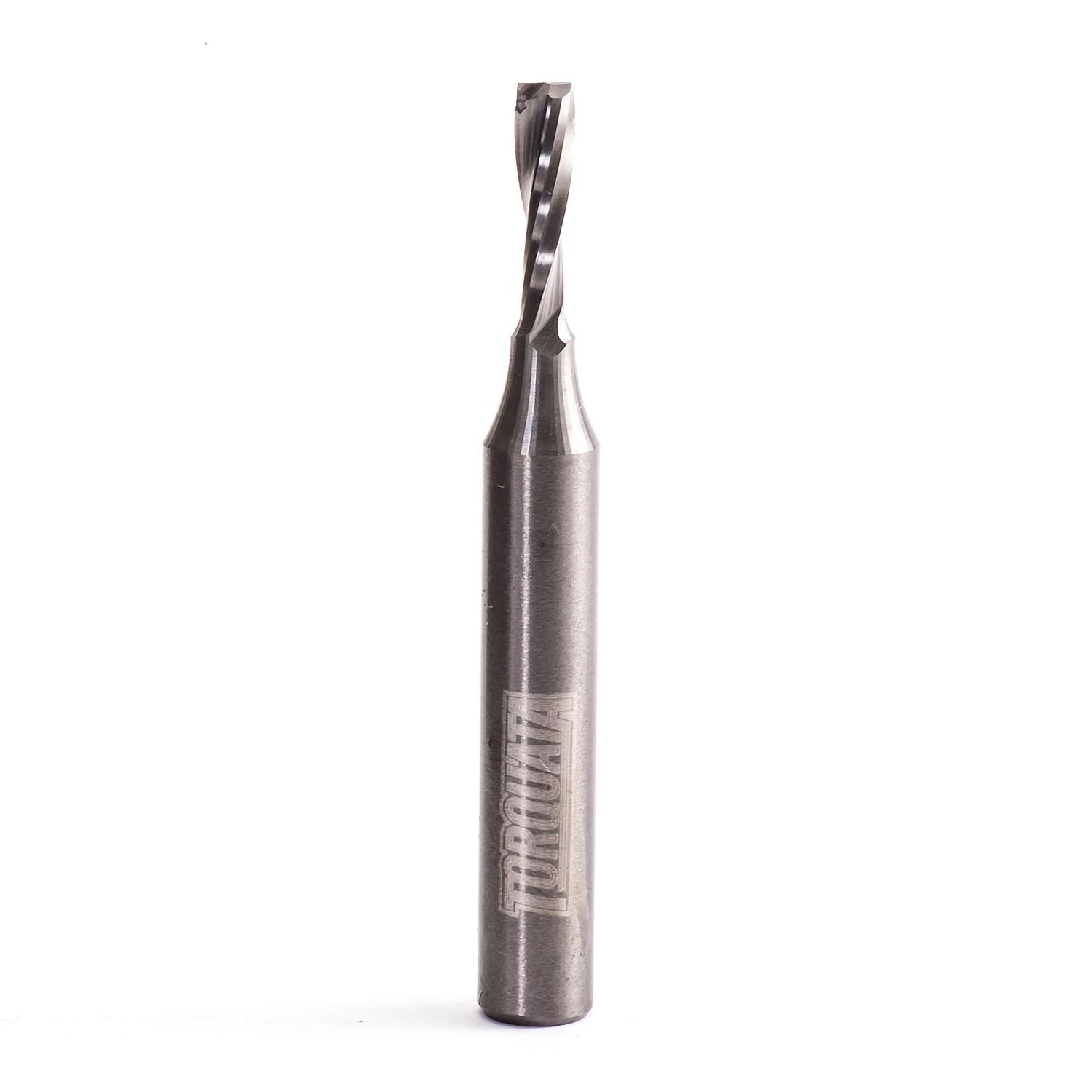

SCU-032-Q	1/4in	3.2	1/8in	12.7	1/2in	50.8
SCU-040-Q	1/4in	4.0	5/32in	12.7	1/2in	50.8
SCU-048-Q	1/4in	4.8	3/16in	19.0	3/4in	50.8
SCU-064-Q	1/4in	6.4	1/4in	19.0	3/4in	50.8
SCU-064-XQ	1/4in	6.4	1/4in	25.4	1in	63.5
SCU-080-H	1/2in	8.0	N/A	25.4	1in	76.1
SCU-095-H	1/2in	9.5	3/8in	31.7	1 1/4in	76.1
SCU-127-H	1/2in	12.7	1/2in	31.7	1 1/4in	76.1
SCU-127-LH	1/2in	12.7	1/2in	38.1	1 1/2in	88.9
SCU-127-XH	1/2in	12.7	1/2in	50.8	2in	102.0
