Torquata Drawer Lock Jointing Router Bits

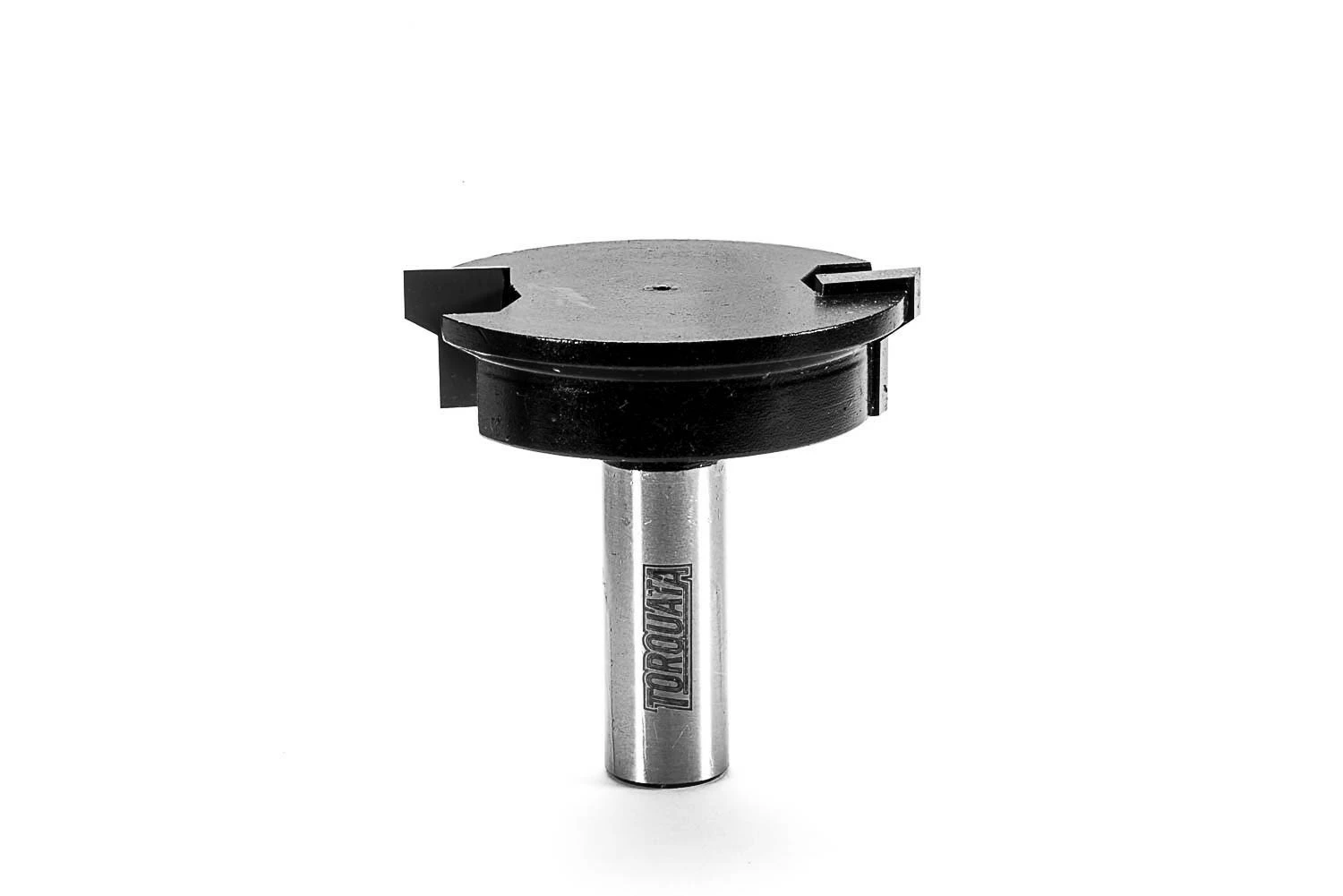

Drawer-Lock Router Bits make draw frame construction so much easier!

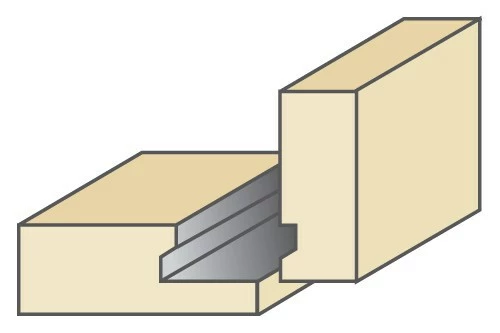

Drawer lock bits are designed to speed up the alignment of flush fitting 90° angle joints to improve joint strength and ease of assembly when making drawer frames.

There are two sizes available for different timber thicknesses. The larger of the two (DL-131-h) will make simple lap joints in thinner material down to 12mm whilst making full size drawer lock joints in materials 16mm and up.

How to use a Drawer-Lock Router Bit

The drawer lock bit is designed to specifically to joint 12mm timber at a 90°angle to improve joint strength and ease of assembly when making drawer frames.

To set up, adjust the depth of cut on the work piece being passed against the bit horizontally to be the same as the thickness of the other work piece. Then on the vertical work piece make sure that the work piece only just engages with the inner-most edge of the cutter and the two pieces should fit flush together.

Specifications

Product Code	Shank Size	Cutter Diameter	Max Joint Thickness	Overall Length Metric
DL-127-Q	1/4in	31.7	10.0 – 12.7mm	44.5
DL-131-H	1/2in	50.8	12.0 – 19.0mm	50.8
