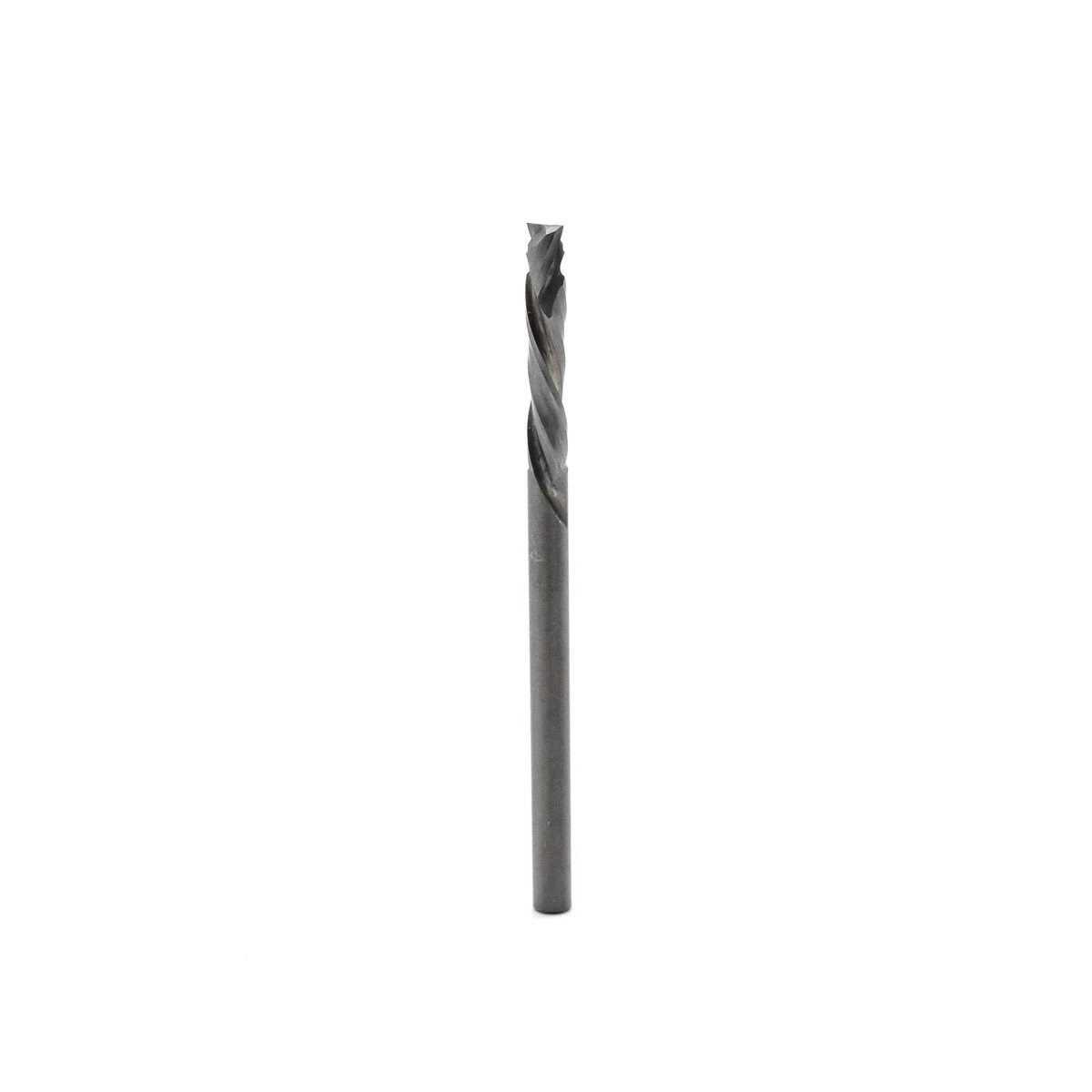

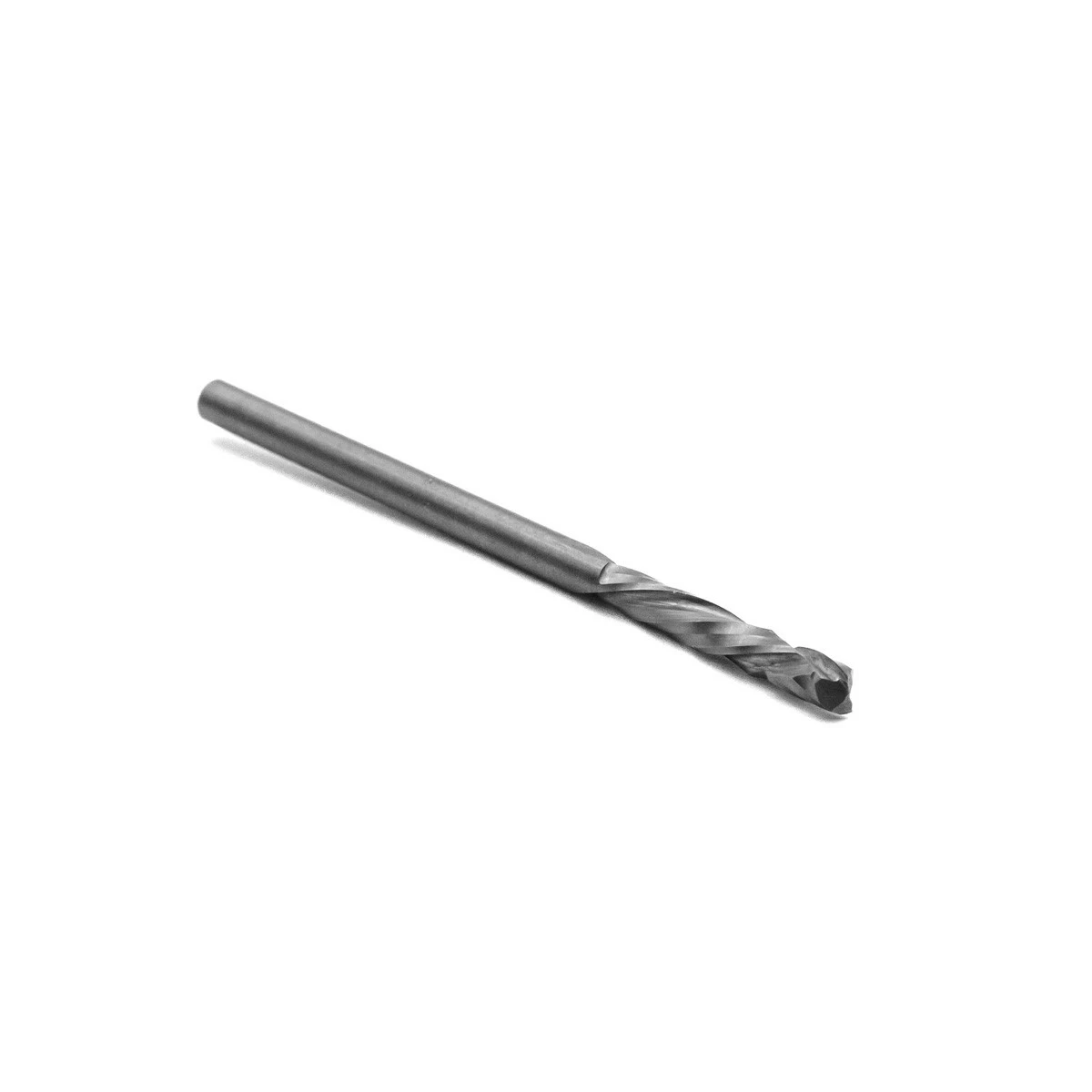

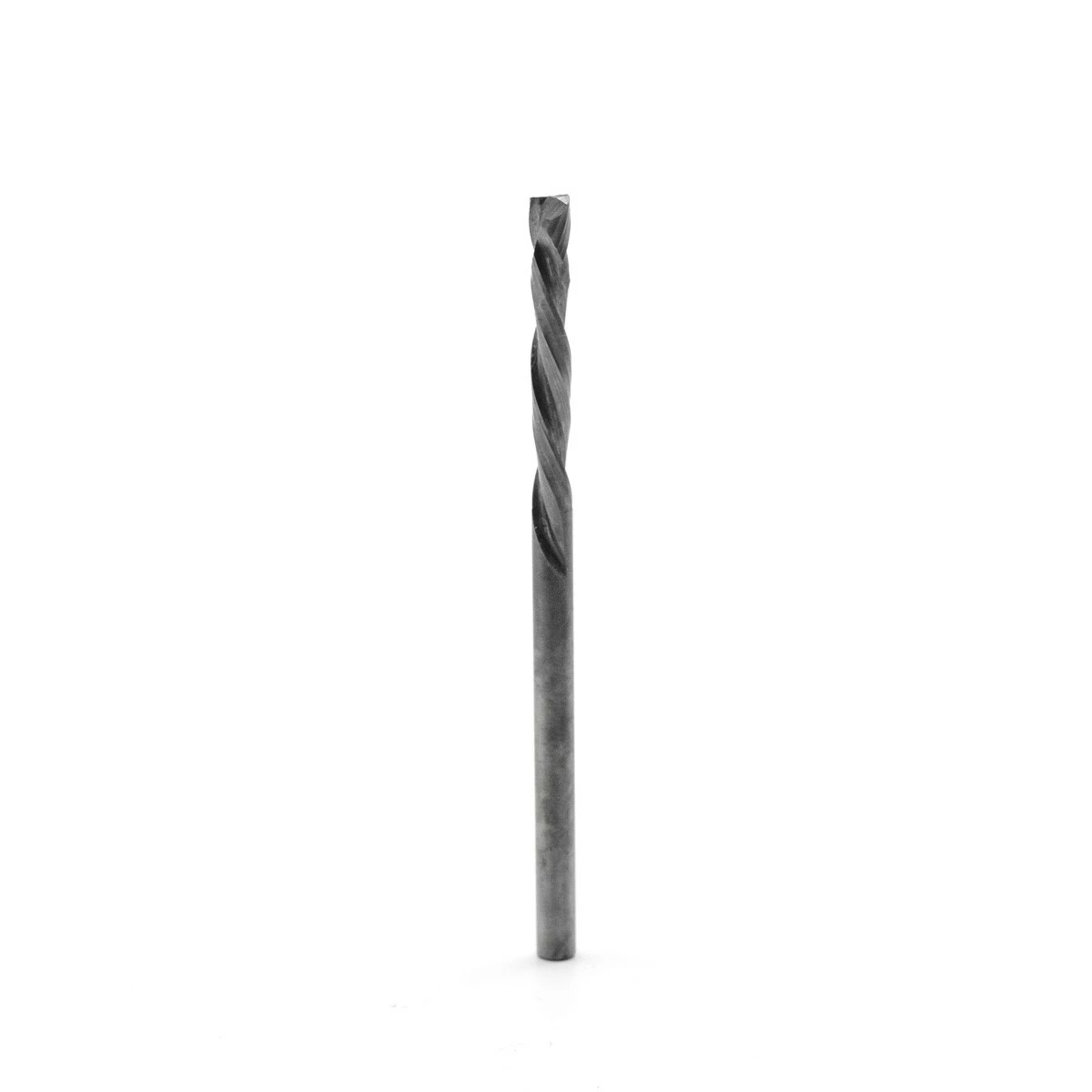

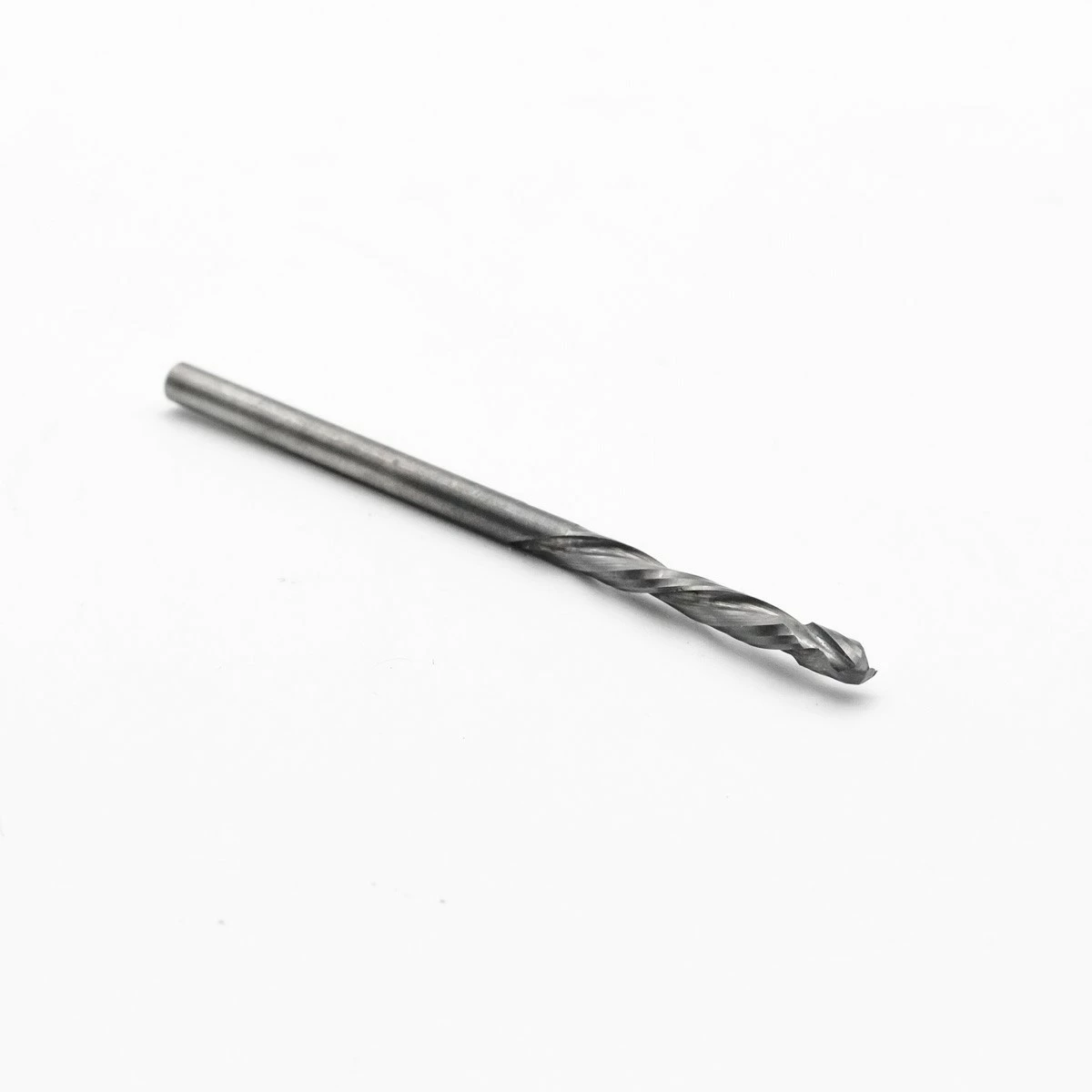

Torquata 1/8in Shank 3.1mm Twin Flute Solid Carbide Compression Spiral CNC Bit
Original price was: $24.90.$17.43Current price is: $17.43.
- Protect Your Wallet with Safe Payments
- Safe and Secure Payments, Always
- Prompt service, every time.
- Safeguard Your Shopping Experience
Torquata CNC solid carbide fluted router bits are ideal for routing plastics, composite panel and non-ferrous materials. Torquata is your economical entry into quality CNC routing for the enthusiast and professional maker alike.
Available in a range of cutting diameters, choose the preferred option from the drop down menu
Torquata compression single flute spiral CNC router bits
The up and down cut action of these compression CNC bits cuts from base up and the surface down ensuring that you have a perfectly clean edge. A compression cutter starts with an up-cut component usually the length of the diameter. For example, a 3mm bit has a 3mm up cut component and the rest to down cut. To achieve the full benefit of the cutter, your first plunge must go below that length of 3mm or more.
Compression bits are designed to cut in a single pass, however, if your CNC cannot handle that depth of cut you can make multiple passes, ensure that first pass is below the upcut portion of the bit. Compression cutters run faster than other router bits to achieve the best finish along the edge of your material.
Applications
Torquata CNC compression bits feature a CNC milled one piece body with 92Rc fine industrial grade carbide. This 1/8in shank twin flute compression CNC router bits are designed for when a perfectly clean edge both top and bottom is required. They are ideal for slot cutting and other trenching applications. Suitable for routing hard and soft woods, plywood and composite materials. They should not be used to bore holes.
Materials
- Wood (MDF, hardwood) – great
- Wood (Ply & softwoods) – great
- Aluminium Composite Materials – good
- Plastics (ABS, acrylic, HPDE etc) – not suitable
Who is Torquata
Torquata is your economical entry into quality CNC routing. All Torquata router bits are back by a limited lifetime warranty. Order your Torquata routing bits today.
| Product Code | Shank Size | Cutting Flutes | Cutting Direction | Cutting Diameter | Cutting Height | Overall Length |
| SCC-032-E
| 1/8in | Twin | Compression | 3.1mm
| 16.0mm | 55mm |
| SCC-032-XE
| 1/8in | Twin | Compression | 3.1mm
| 20.0mm | 60mm |
Torquata CNC solid carbide fluted router bits are ideal for routing plastics, composite panel and non-ferrous materials. Torquata is your economical entry into quality CNC routing for the enthusiast and professional maker alike.
Available in a range of cutting diameters, choose the preferred option from the drop down menu
Torquata compression single flute spiral CNC router bits
The up and down cut action of these compression CNC bits cuts from base up and the surface down ensuring that you have a perfectly clean edge. A compression cutter starts with an up-cut component usually the length of the diameter. For example, a 3mm bit has a 3mm up cut component and the rest to down cut. To achieve the full benefit of the cutter, your first plunge must go below that length of 3mm or more.
Compression bits are designed to cut in a single pass, however, if your CNC cannot handle that depth of cut you can make multiple passes, ensure that first pass is below the upcut portion of the bit. Compression cutters run faster than other router bits to achieve the best finish along the edge of your material.
Applications
Torquata CNC compression bits feature a CNC milled one piece body with 92Rc fine industrial grade carbide. This 1/8in shank twin flute compression CNC router bits are designed for when a perfectly clean edge both top and bottom is required. They are ideal for slot cutting and other trenching applications. Suitable for routing hard and soft woods, plywood and composite materials. They should not be used to bore holes.
Materials
- Wood (MDF, hardwood) – great
- Wood (Ply & softwoods) – great
- Aluminium Composite Materials – good
- Plastics (ABS, acrylic, HPDE etc) – not suitable
Who is Torquata
Torquata is your economical entry into quality CNC routing. All Torquata router bits are back by a limited lifetime warranty. Order your Torquata routing bits today.
