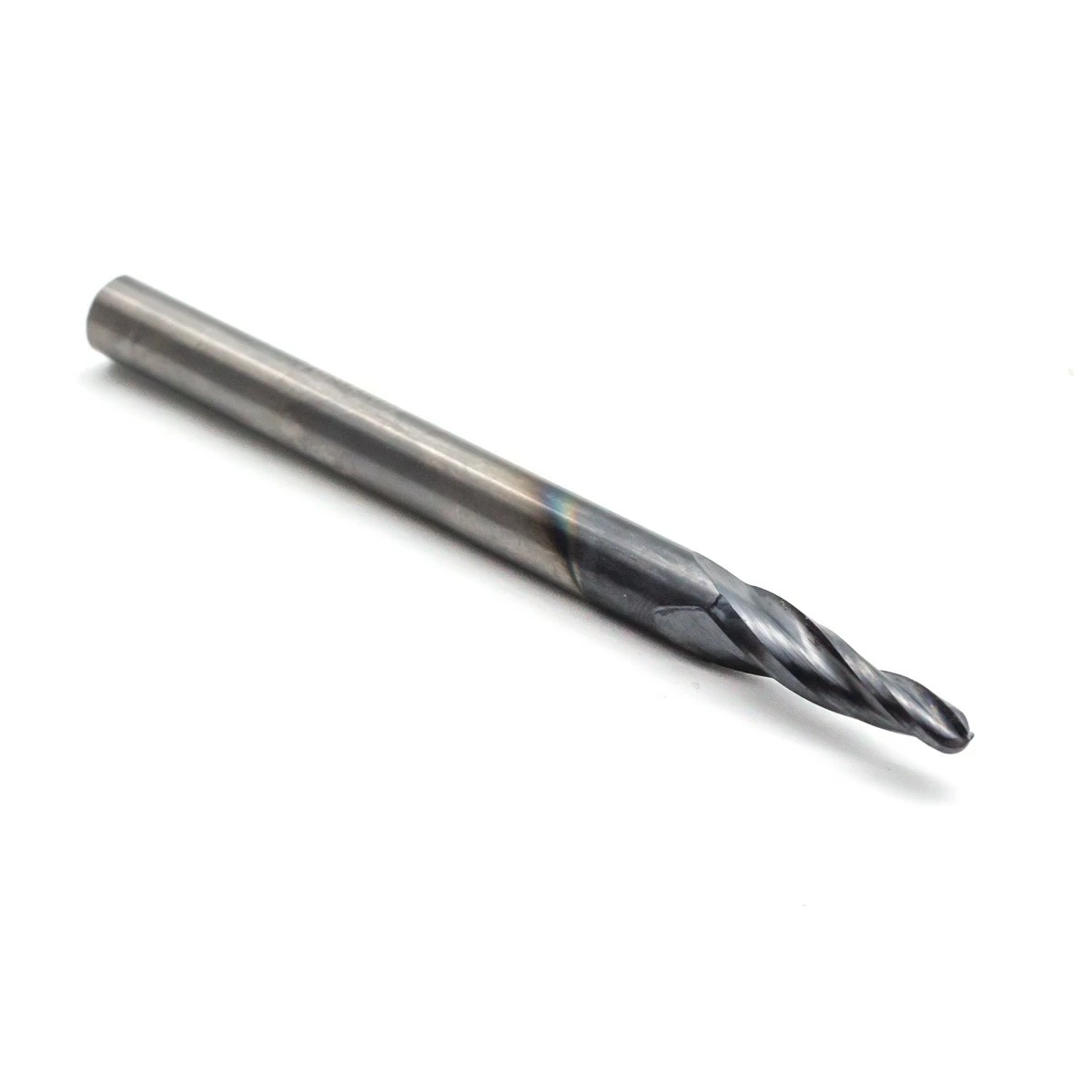

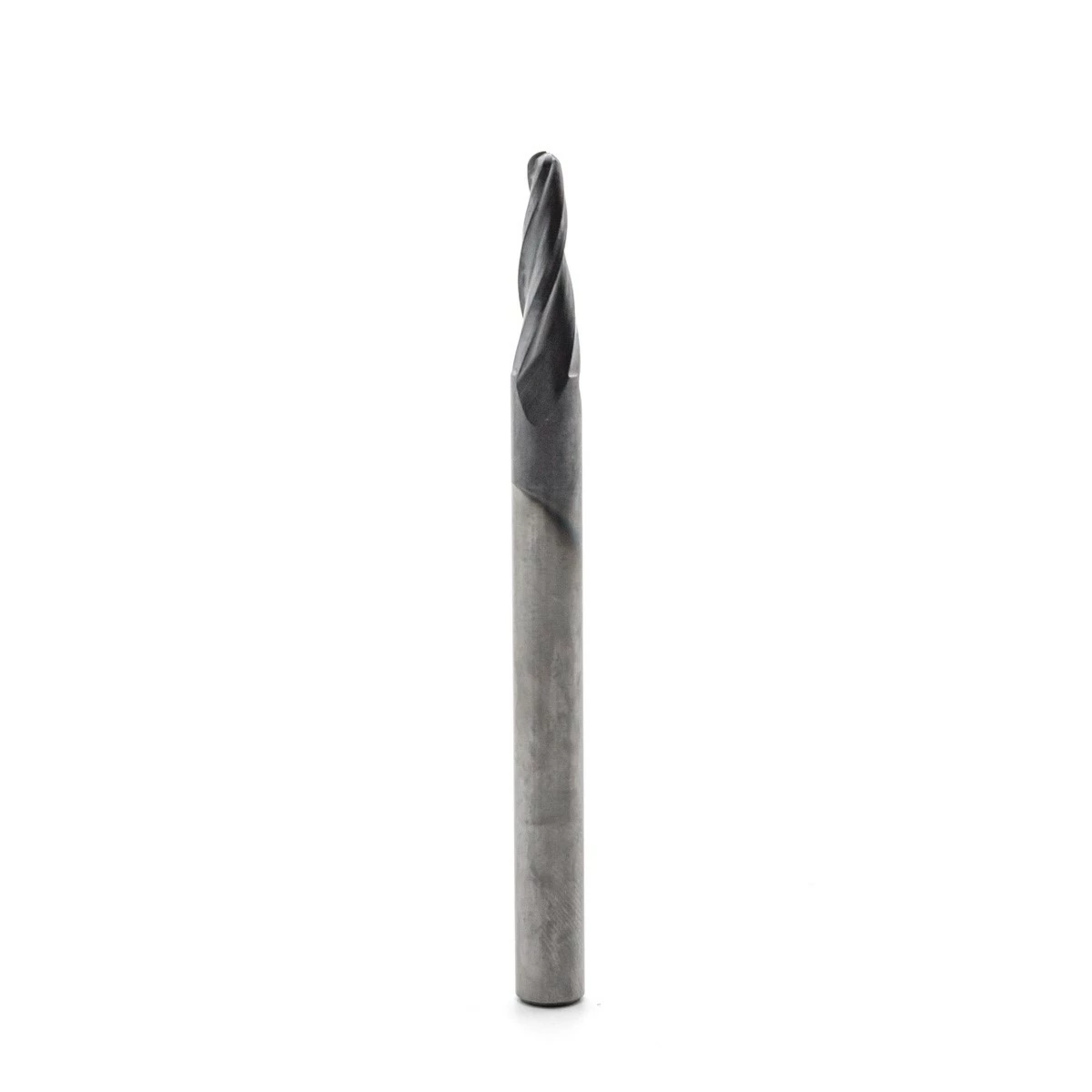

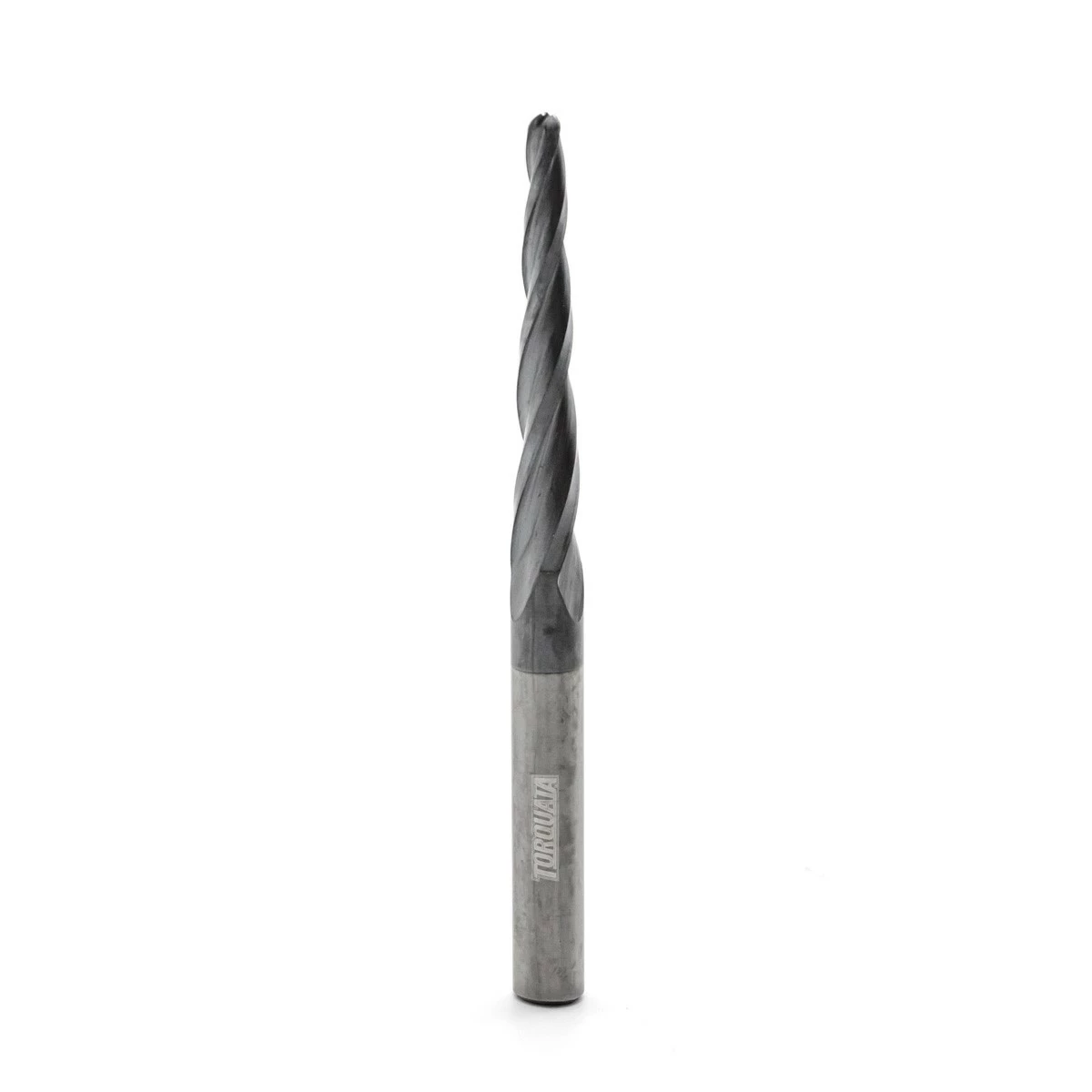

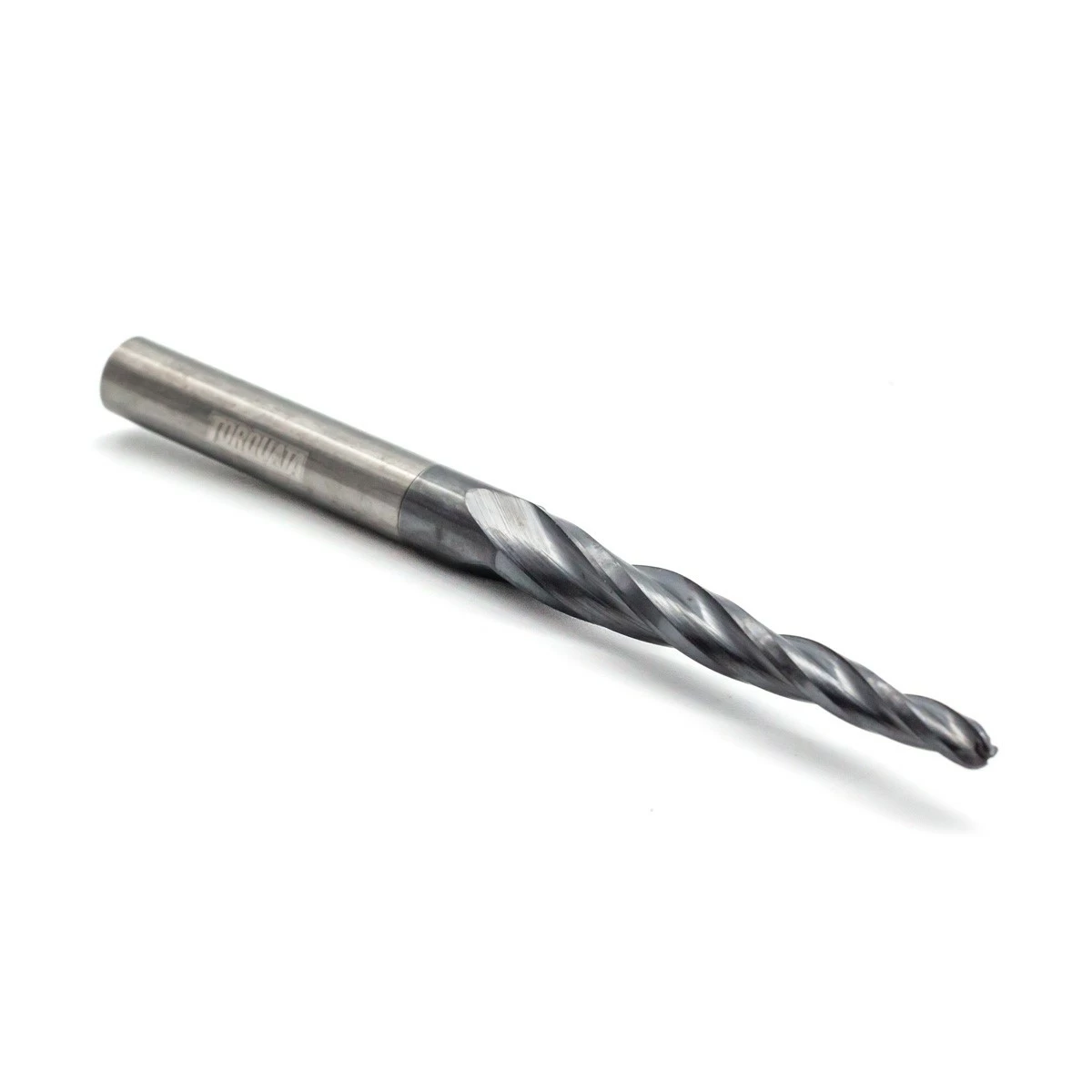

Torquata 1/4in Shank Triple Flute Solid Carbide Spiral Up Cut ZrN Coated CNC Bit
Original price was: $33.90.$23.73Current price is: $23.73.
- Protect Your Wallet with Safe Payments
- Safe and Secure Payments, Always
- Prompt service, every time.
- Safeguard Your Shopping Experience
Torquata CNC solid carbide router bits are ideal for routing plastics, composite panel and non-ferrous materials. Torquata is your economical entry into quality CNC routing for the enthusiast and professional maker alike.
Available in a range of cutting degrees, choose the preferred option from the drop down menu
Torquata triple flute carving ZrN coated CNC router bit
This CNC router bit is designed for 2D and 3D CNC profiling and carving in plastic, aluminium & wood. The high-shear ball nose tips cut smooth 2D and 3D contours with reduced stepping while the proprietary ZrN coating (applied by the physical vapour deposition coating process) provides high resistance to wear, sharper cutting edges, extended tool life and less friction and heat build-up. It can tolerate RPM’s up to 60,000 RPM. A directed air-blast to keep chips away along with cooling the tool is advised.
Applications
Ideal for 3D carving and precision 2D and 3D large scale carving. Great for deep profiling and dimensional signage. 3D millwork, 2D and 3D contouring, profiling, modelling and pattern making for cabinetry, sign making, furniture making and jewellery mould making. Perfect for model-makers on large 3D milling profiles in abrasive EPS foam and other materials
Materials
- Plastics (ABS, acrylic, HPDE etc)
- Sign foam
- Plexiglass
- Corian
- Polyethylene
- Non ferrous materials
- Wood (MDF, hardwood)
- Wood (Ply & softwoods)
Benefits of Zirconium Nitride (ZrN) Coating
- Creates a harder and tougher cutting edge prolonging the cutting-edge life and helps to prevent the build-up of material in the flutes while cutting
- May operate faster than an uncoated tool
Routing Plastics
All plastics tend to behave differently so attention must be paid first and foremost to heat input, as that greatly impacts surface finish and chip control. Suggested starting spindle speed might be 18,000 RPM, there needs to be some experimenting on the part of the programmer to best find an acceptable finish.
Who is Torquata
Torquata is your economical entry into quality CNC routing. All Torquata router bits are back by a limited lifetime warranty. Order your Torquata routing bits today.
| Product Code | Shank Size | Cutting Flutes | Angle | Radius | Cutting length | Overall Length |
| BTU-032-Q-3-F
| 1/4in | Triple | 5.0 degrees | 1/16 | 38.1mm | 76.2mm |
| BTU-032-XQ-3-F
| 1/4in | Triple | 1.0 degrees | 1/16 | 19mm | 76.2mm |
Torquata CNC solid carbide router bits are ideal for routing plastics, composite panel and non-ferrous materials. Torquata is your economical entry into quality CNC routing for the enthusiast and professional maker alike.
Available in a range of cutting degrees, choose the preferred option from the drop down menu
Torquata triple flute carving ZrN coated CNC router bit
This CNC router bit is designed for 2D and 3D CNC profiling and carving in plastic, aluminium & wood. The high-shear ball nose tips cut smooth 2D and 3D contours with reduced stepping while the proprietary ZrN coating (applied by the physical vapour deposition coating process) provides high resistance to wear, sharper cutting edges, extended tool life and less friction and heat build-up. It can tolerate RPM’s up to 60,000 RPM. A directed air-blast to keep chips away along with cooling the tool is advised.
Applications
Ideal for 3D carving and precision 2D and 3D large scale carving. Great for deep profiling and dimensional signage. 3D millwork, 2D and 3D contouring, profiling, modelling and pattern making for cabinetry, sign making, furniture making and jewellery mould making. Perfect for model-makers on large 3D milling profiles in abrasive EPS foam and other materials
Materials
- Plastics (ABS, acrylic, HPDE etc)
- Sign foam
- Plexiglass
- Corian
- Polyethylene
- Non ferrous materials
- Wood (MDF, hardwood)
- Wood (Ply & softwoods)
Benefits of Zirconium Nitride (ZrN) Coating
- Creates a harder and tougher cutting edge prolonging the cutting-edge life and helps to prevent the build-up of material in the flutes while cutting
- May operate faster than an uncoated tool
Routing Plastics
All plastics tend to behave differently so attention must be paid first and foremost to heat input, as that greatly impacts surface finish and chip control. Suggested starting spindle speed might be 18,000 RPM, there needs to be some experimenting on the part of the programmer to best find an acceptable finish.
Who is Torquata
Torquata is your economical entry into quality CNC routing. All Torquata router bits are back by a limited lifetime warranty. Order your Torquata routing bits today.
