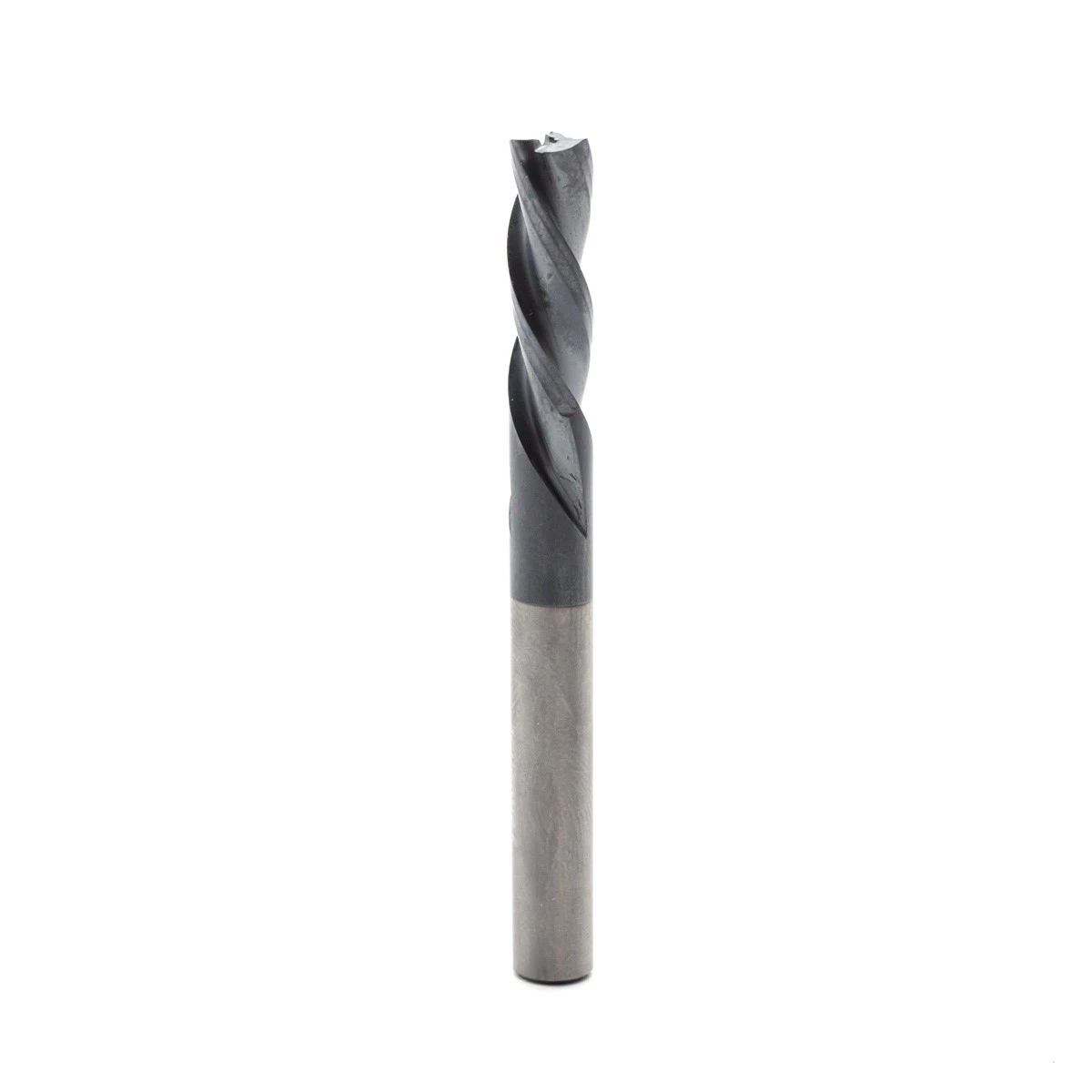

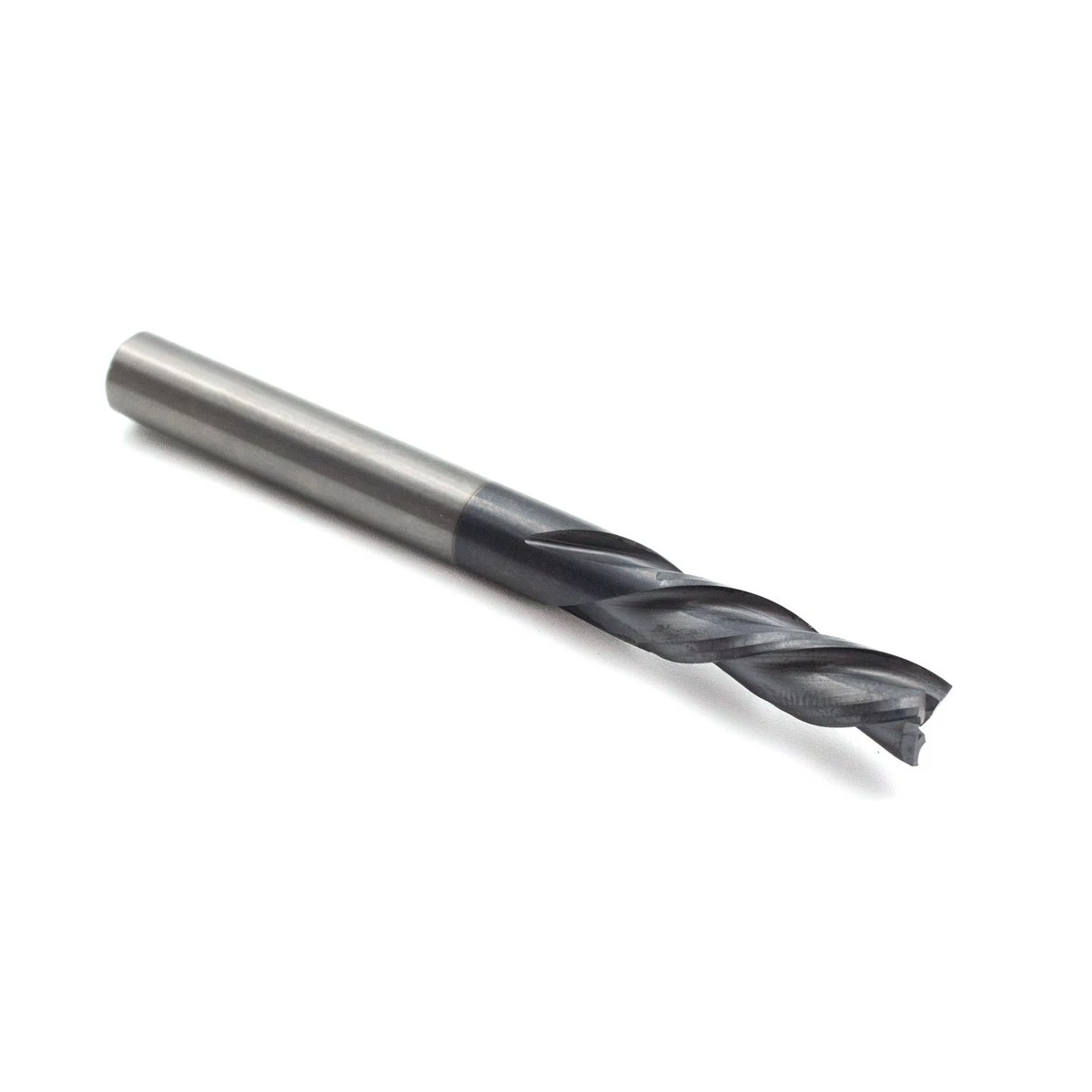

Torquata 1/4in Shank 3 Flute Solid Carbide 1/4in ZrN Coated Up Cut Spiral Long CNC Bit

Torquata CNC solid carbide spiral flute router bits are ideal for routing plastics, composite panel and non-ferrous materials. Torquata is your economical entry into quality CNC routing for the enthusiast and professional maker alike.

Torquata upcut 3 flute spiral CNC router bits

This CNC router bit is designed for cutting composites, fibreglass and phenolics.

Materials

• Plastic
• Aluminium
• Acrylonitrile-Butadiene-Styrene (ABS)
• Carbon Fiber Reinforced Polymer (CFRP)
• Corian
• Fiberglass
• Fiberglass PCB Board
• HDPE
• High Impact Polystyrene (HIPS)
• Low Density Polyethylene (LDPE)
• Phenolics
• Poly (methyl methacrylate) (PMMA)
• Polycarbonate (Lexan™)†
• Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
• Thermoplastic Polyolefin (TPO

Benefits of Zirconium Nitride (ZrN) Coating

• Creates a harder and tougher cutting edge prolonging the cutting-edge life and helps to prevent the build-up of material in the flutes while cutting
• May operate faster than an uncoated tool

Who is Torquata

Torquata is your economical entry into quality CNC routing. All Torquata router bits are back by a limited lifetime warranty. Order your Torquata routing bits today.

Product Code	Shank Size	Cutting Flutes	Cutting Direction	Cutting Diameter	Cutting Height	Overall Length
SMU-064-Q-3-F	1/4in	3	Up Cut	1/4in	19.0mm	63.5mm
