Torquata 1/4in & 1/2in Shank Triple Flute Solid Carbide Up Cut Spiral CNC Bits
Original price was: $43.50.$30.45Current price is: $30.45.
- Protect Your Wallet with Safe Payments
- Safe and Secure Payments, Always
- Prompt service, every time.
- Safeguard Your Shopping Experience
Torquata CNC solid carbide spiral flute router bits are ideal for routing plastics, composite panel and non-ferrous materials. Torquata is your economical entry into quality CNC routing for the enthusiast and professional maker alike.
Available in a range of cutting diameters, choose the preferred option from the drop down menu
Torquata upcut triple flute spiral CNC router bits
The up-cut action of these CNC bits pulls the material fibres up and out of the cut. This makes these Torquata Up Cut bits ideal for when a clean bottom surface finish is required or when getting maximum chip evacuation on deeper profile cuts is important. And because they are triple fluted, you can expect the edge finish to be extra perfect. More efficient chip evacuation also means being able to run the bit at an increased feed rate without creating excess heat. The triple flute router will also resist heat further prolonging the life of your router bit.
Applications
Torquata CNC straight bits feature a CNC milled one piece body with 92Rc fine industrial grade carbide. These triple flute CNC router bits are designed for high feed rate production work such as cutting parts or deep trenching. Increase your productivity with a Torquata up cut CNC router bit when routing hard and soft woods, plywood, composite materials, aluminium and other non-ferrous metals.
Materials
- Aluminium Composite Materials – Excellent
- Wood (MDF, hardwood) – Good
- Wood (Ply & softwoods) – Good
- Non-ferrous metals – Good
- Plastics (ABS, acrylic, HPDE etc) – not suitable
Key features and benefits
- Chips evacuated up out of the cut producing clean bottom edge finishes – great for deep trenching
- Higher rate of feed possible so great for production work
- Resist heating extending the life of the bit
- Perfect for cutting multi directional materials such as plywood and figured timber
- Suitable for as broad range on materials including aluminium & non-ferrous metals
Who is Torquata
Torquata is your economical entry into quality CNC routing. All Torquata router bits are back by a limited lifetime warranty. Order your Torquata routing bits today.
| Product Code | Shank Size | Cutting Flutes | Cutting Direction | Cutting Diameter | Cutting Height | Overall Length |

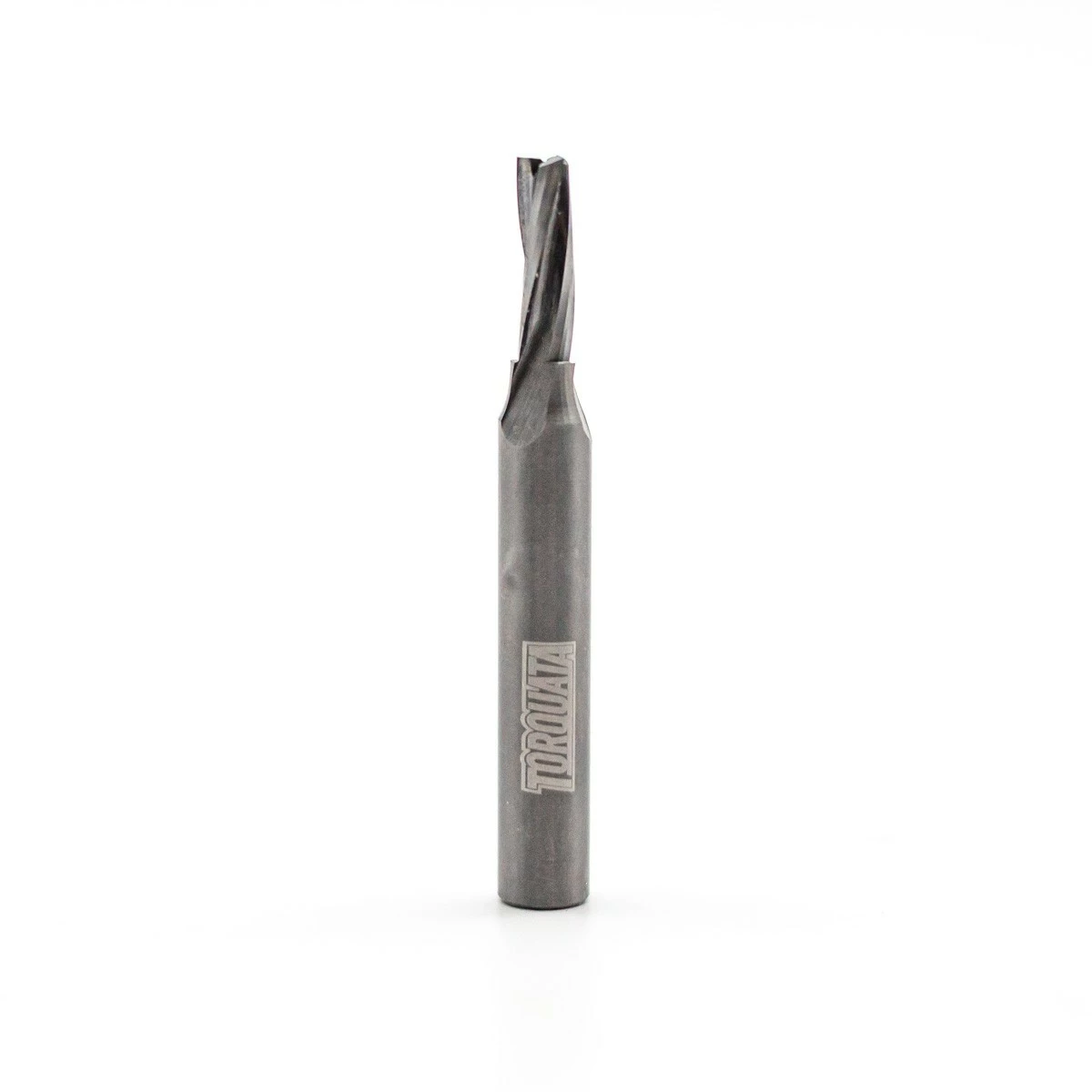

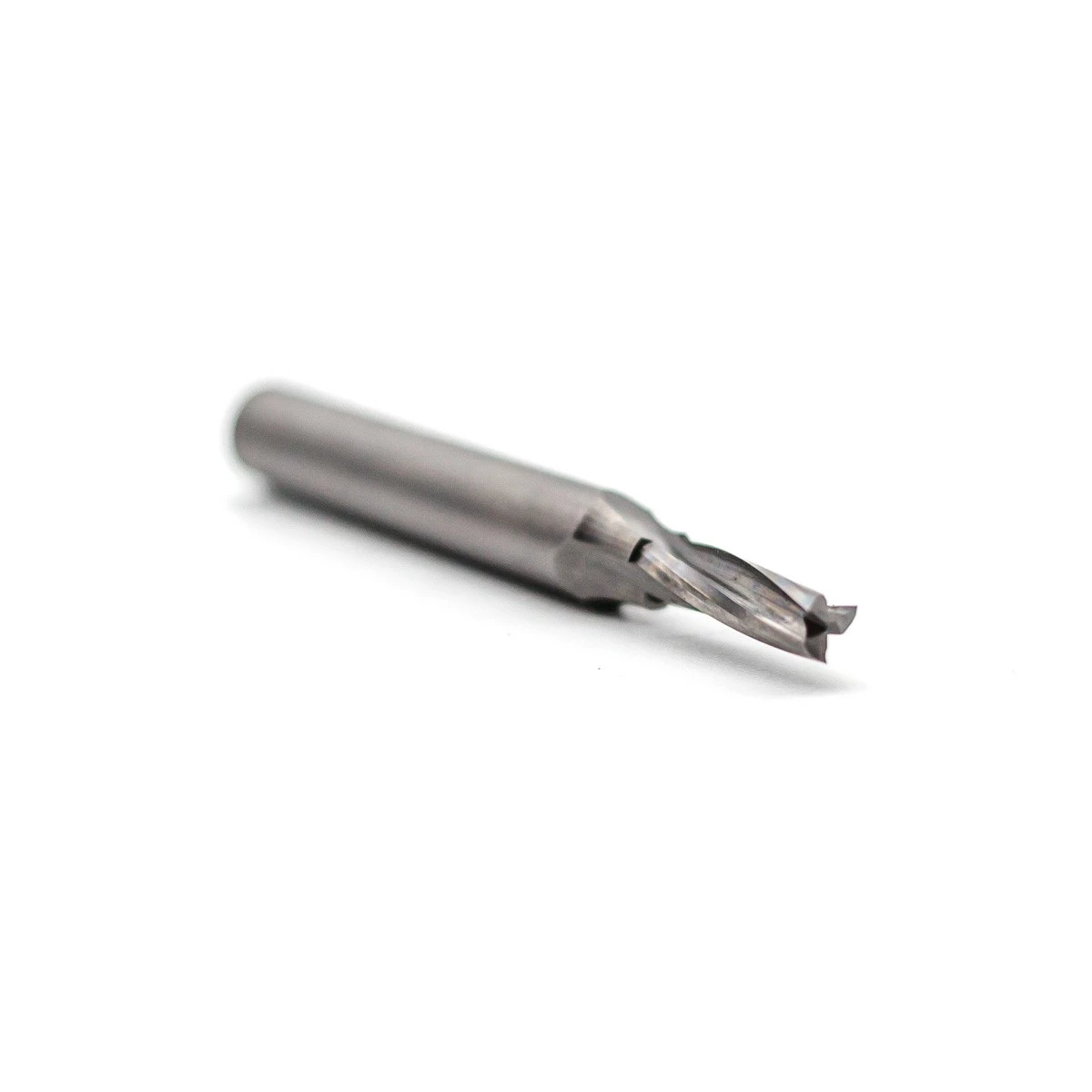

| SCU-040-Q-3-F
| 1/4in | Triple | Up Cut | 4.0mm | 12.7mm | 52mm |

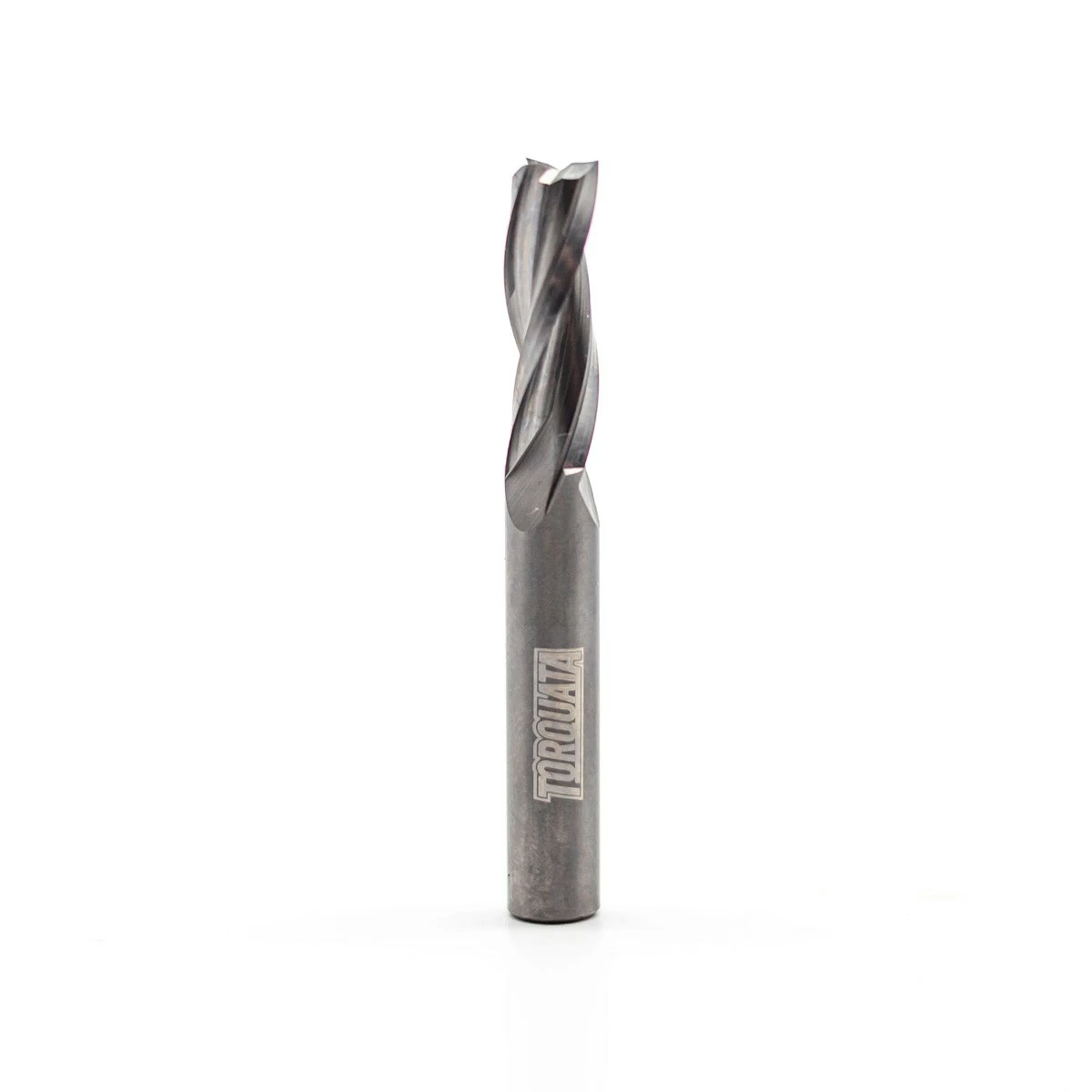

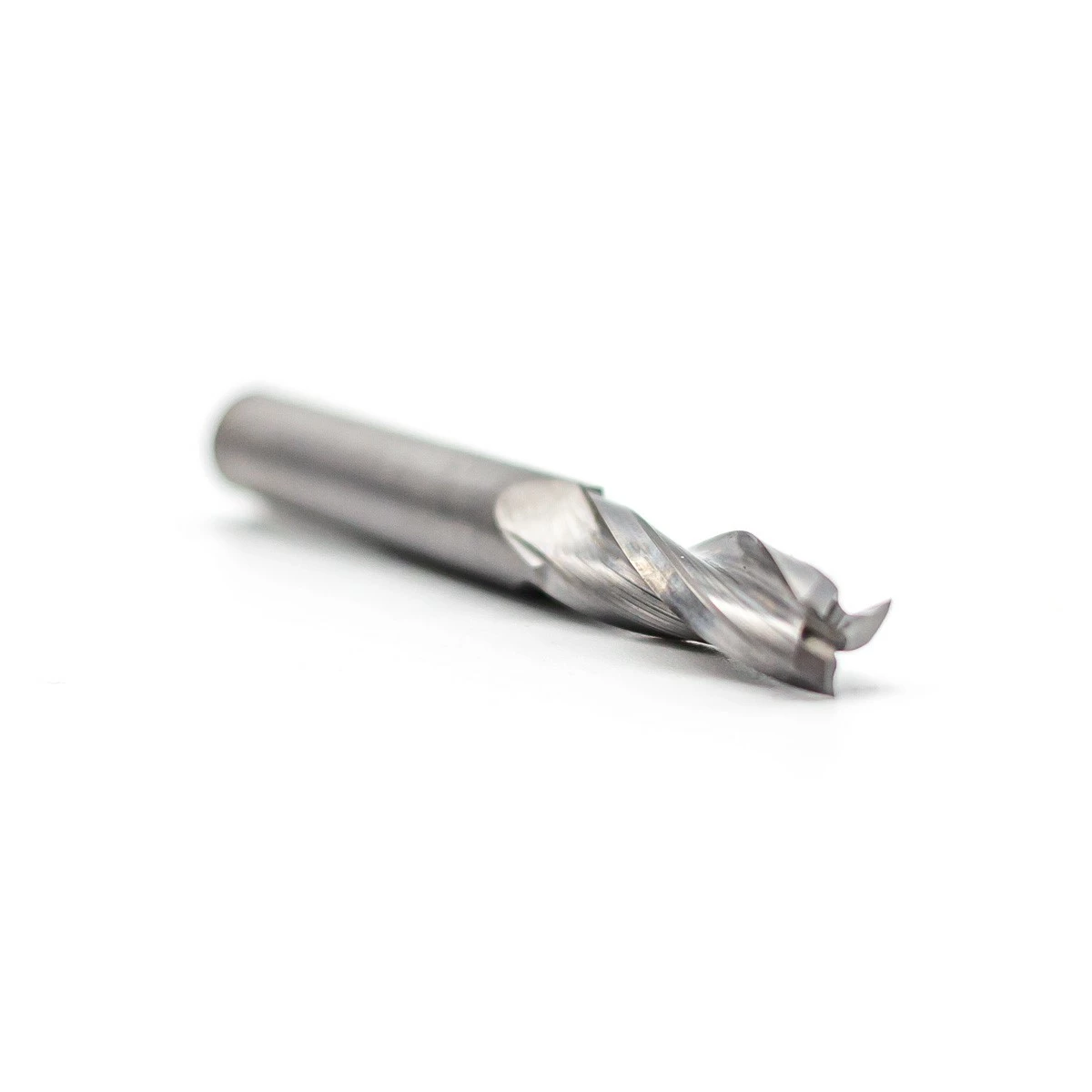

| SCU-064-Q-3-F
| 1/4in | Triple | Up Cut | 6.35mm | 19mm | 52mm |
| SCU-064-XQ-3-F
| 1/4in | Triple | Up Cut | 6.35mm | 25.4mm | 65mm |
| SCU-095-H-3-F
| 1/2in | Triple | Up Cut | 9.5mm | 31.7mm | 77mm |

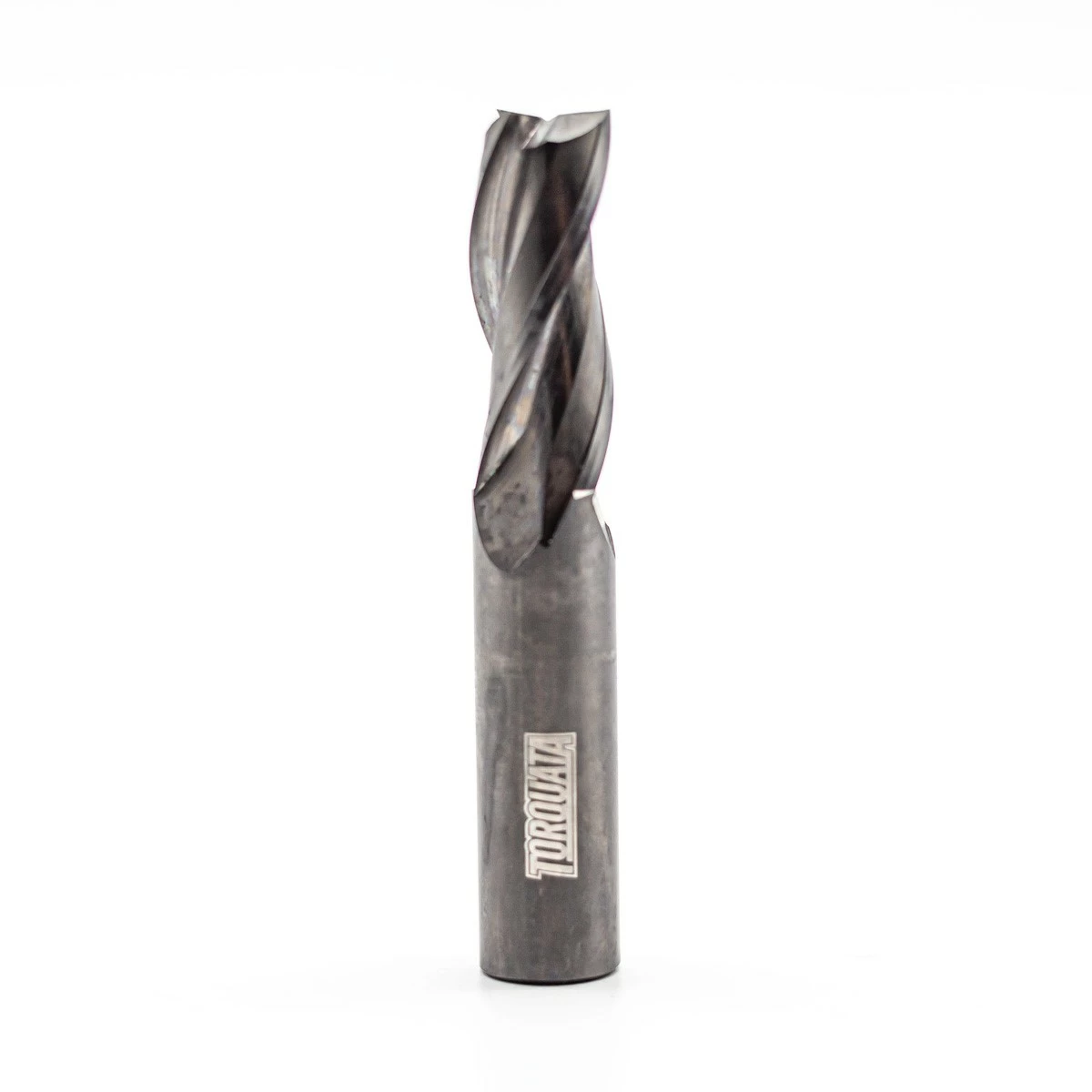

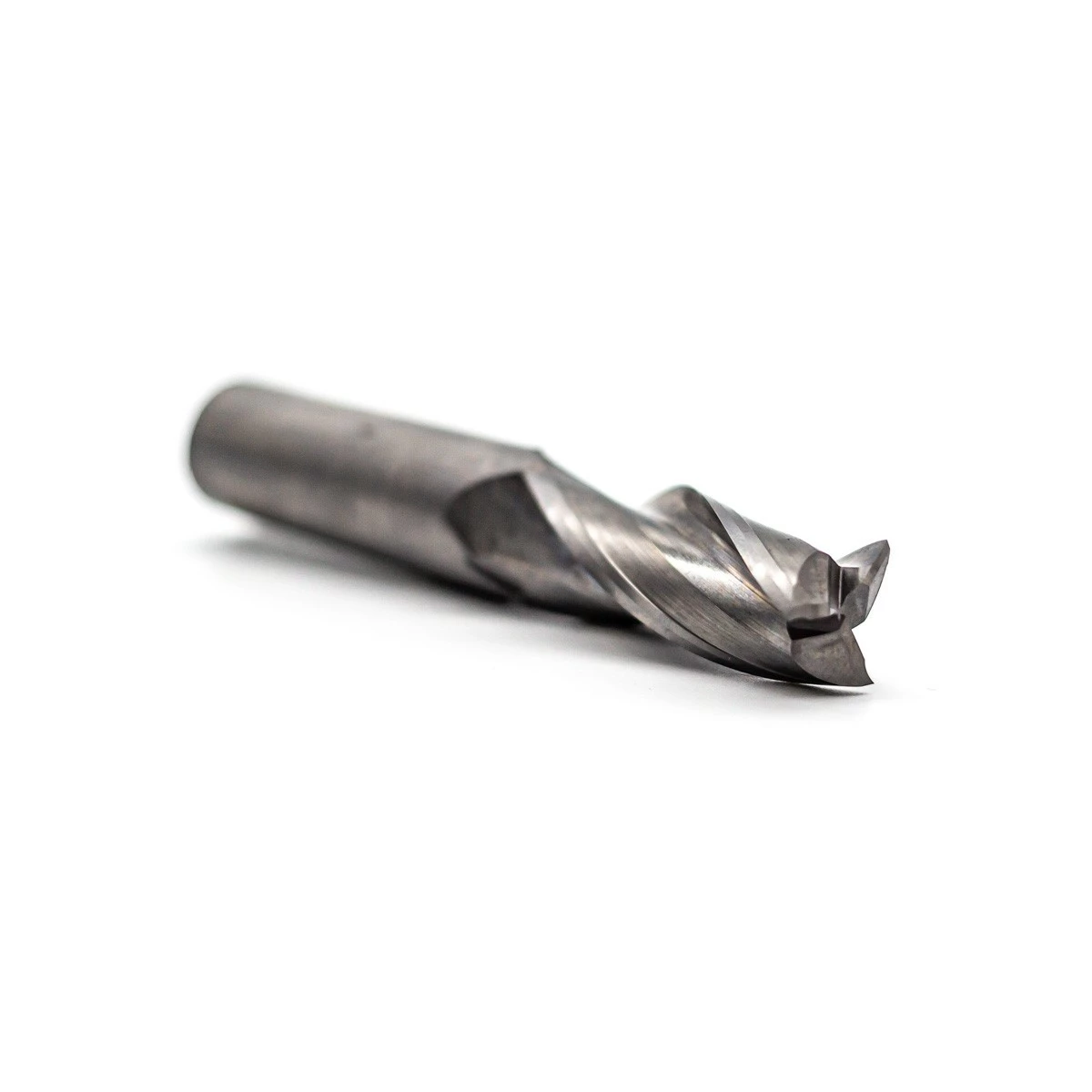

| SCU-127-H-3-F
| 1/2in | Triple | Up Cut | 12.7mm | 31.7mm | 77mm |

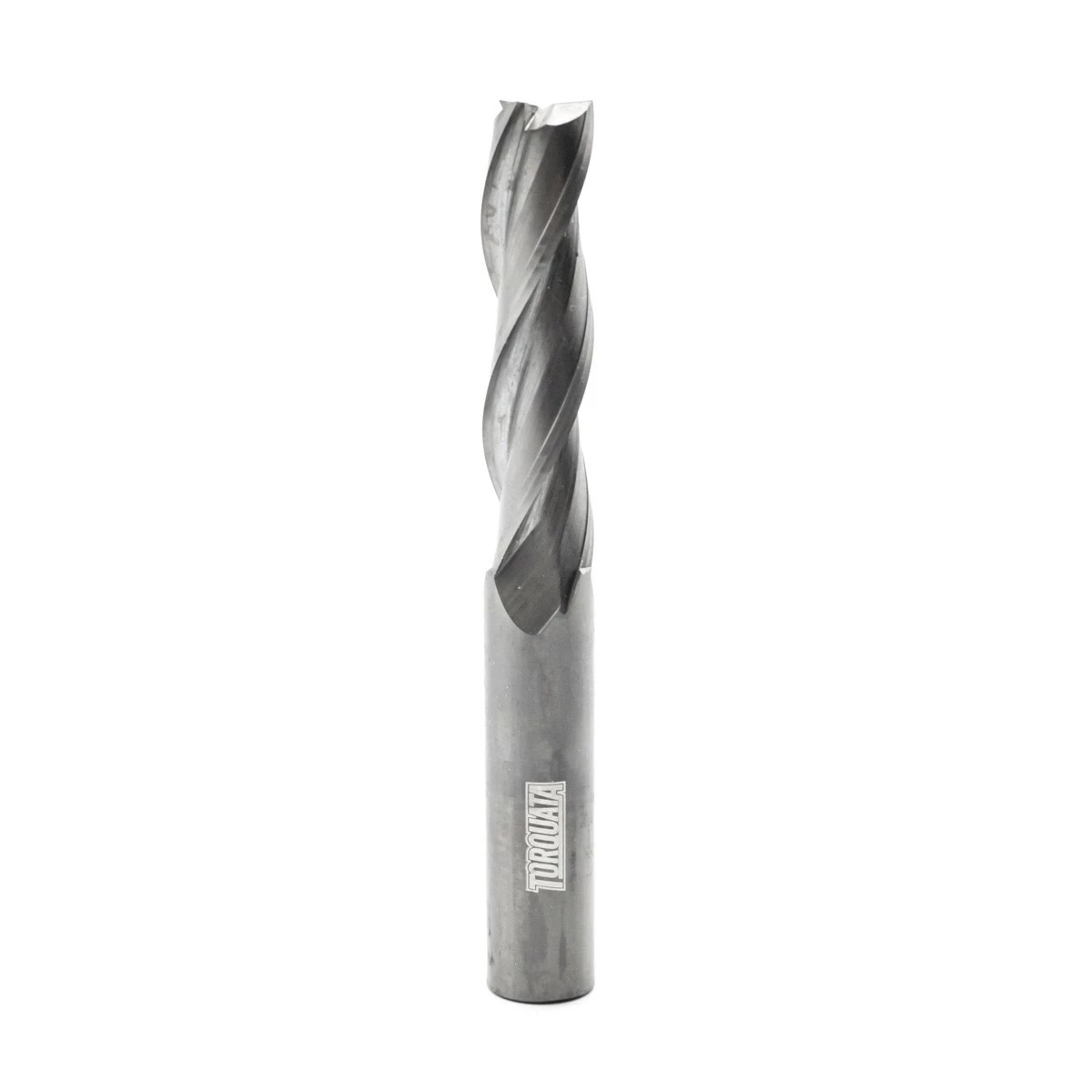

| SCU-127-XH-3-F
| 1/2in | Triple | Up Cut | 12.7mm | 50.8mm | 102mm |
Torquata CNC solid carbide spiral flute router bits are ideal for routing plastics, composite panel and non-ferrous materials. Torquata is your economical entry into quality CNC routing for the enthusiast and professional maker alike.
Available in a range of cutting diameters, choose the preferred option from the drop down menu
Torquata upcut triple flute spiral CNC router bits
The up-cut action of these CNC bits pulls the material fibres up and out of the cut. This makes these Torquata Up Cut bits ideal for when a clean bottom surface finish is required or when getting maximum chip evacuation on deeper profile cuts is important. And because they are triple fluted, you can expect the edge finish to be extra perfect. More efficient chip evacuation also means being able to run the bit at an increased feed rate without creating excess heat. The triple flute router will also resist heat further prolonging the life of your router bit.
Applications
Torquata CNC straight bits feature a CNC milled one piece body with 92Rc fine industrial grade carbide. These triple flute CNC router bits are designed for high feed rate production work such as cutting parts or deep trenching. Increase your productivity with a Torquata up cut CNC router bit when routing hard and soft woods, plywood, composite materials, aluminium and other non-ferrous metals.
Materials
- Aluminium Composite Materials – Excellent
- Wood (MDF, hardwood) – Good
- Wood (Ply & softwoods) – Good
- Non-ferrous metals – Good
- Plastics (ABS, acrylic, HPDE etc) – not suitable
Key features and benefits
- Chips evacuated up out of the cut producing clean bottom edge finishes – great for deep trenching
- Higher rate of feed possible so great for production work
- Resist heating extending the life of the bit
- Perfect for cutting multi directional materials such as plywood and figured timber
- Suitable for as broad range on materials including aluminium & non-ferrous metals
Who is Torquata
Torquata is your economical entry into quality CNC routing. All Torquata router bits are back by a limited lifetime warranty. Order your Torquata routing bits today.
