Sherwood Router Lift & Mounting Plate With SRM-1000 Round Body Motor

Do you want a high performance and accurate benchtop router table setup? Then check out the RLIFT-2-SRM-1000 Router Lift & Mounting Plate with Round Body Motor from Sherwood. An excellent and affordable upgrade for any woodworker’s benchtop router table, perfect for the enthusiast or pro woodworker alike.

If you are looking for an affordable high-quality router lift and motor ensemble then check out the Sherwood RLIFT-2-SRM-1000 Router Lift & Mounting Plate with Round Body Motor. This kit is made up of a Sherwood RLIFT-2 router lift and SRM-1000 motor. This is an affordable and very tidy router lift perfect for benchtop router setups.

The Sherwood Router Lift & Mounting Plate SRM-1000 Round Body Motor

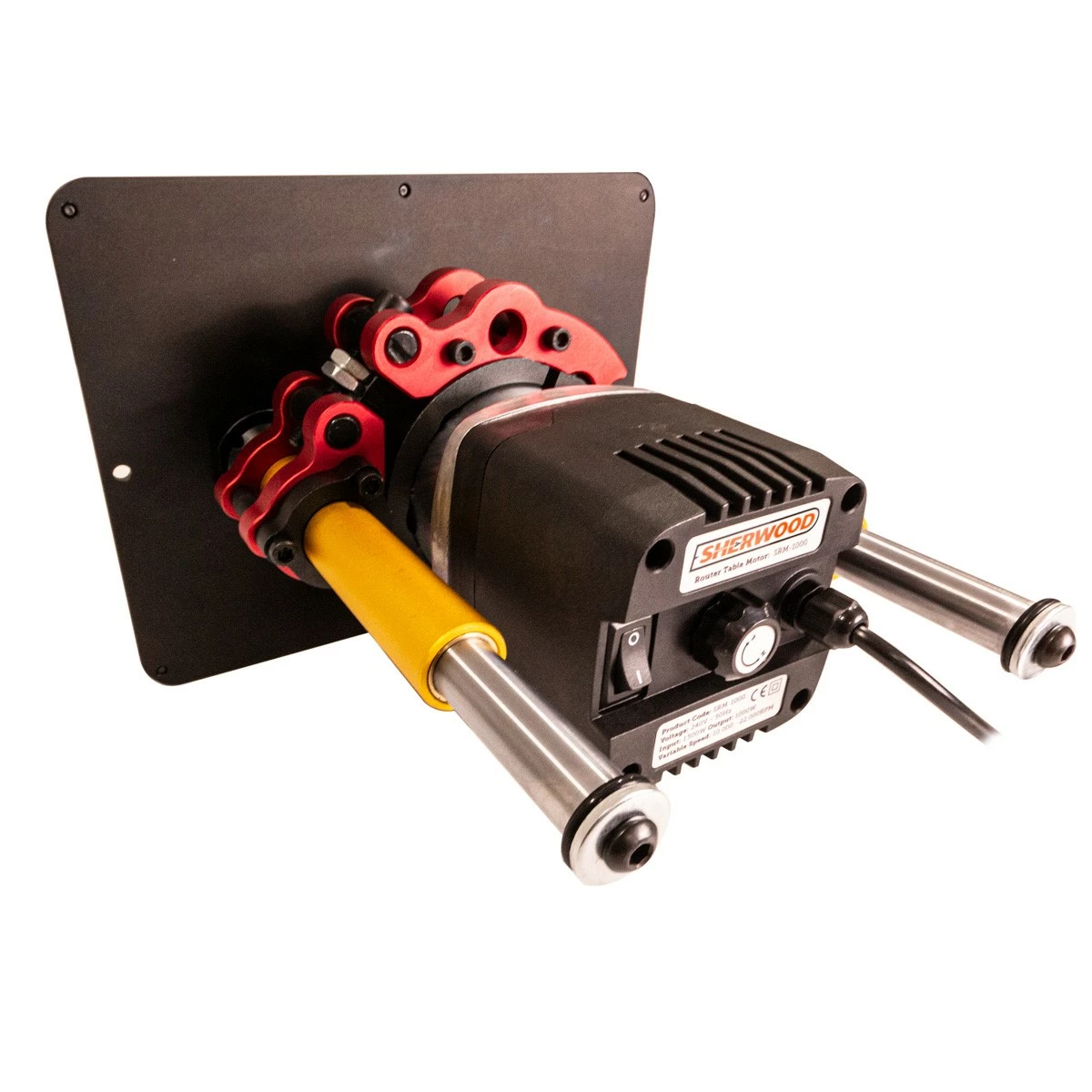

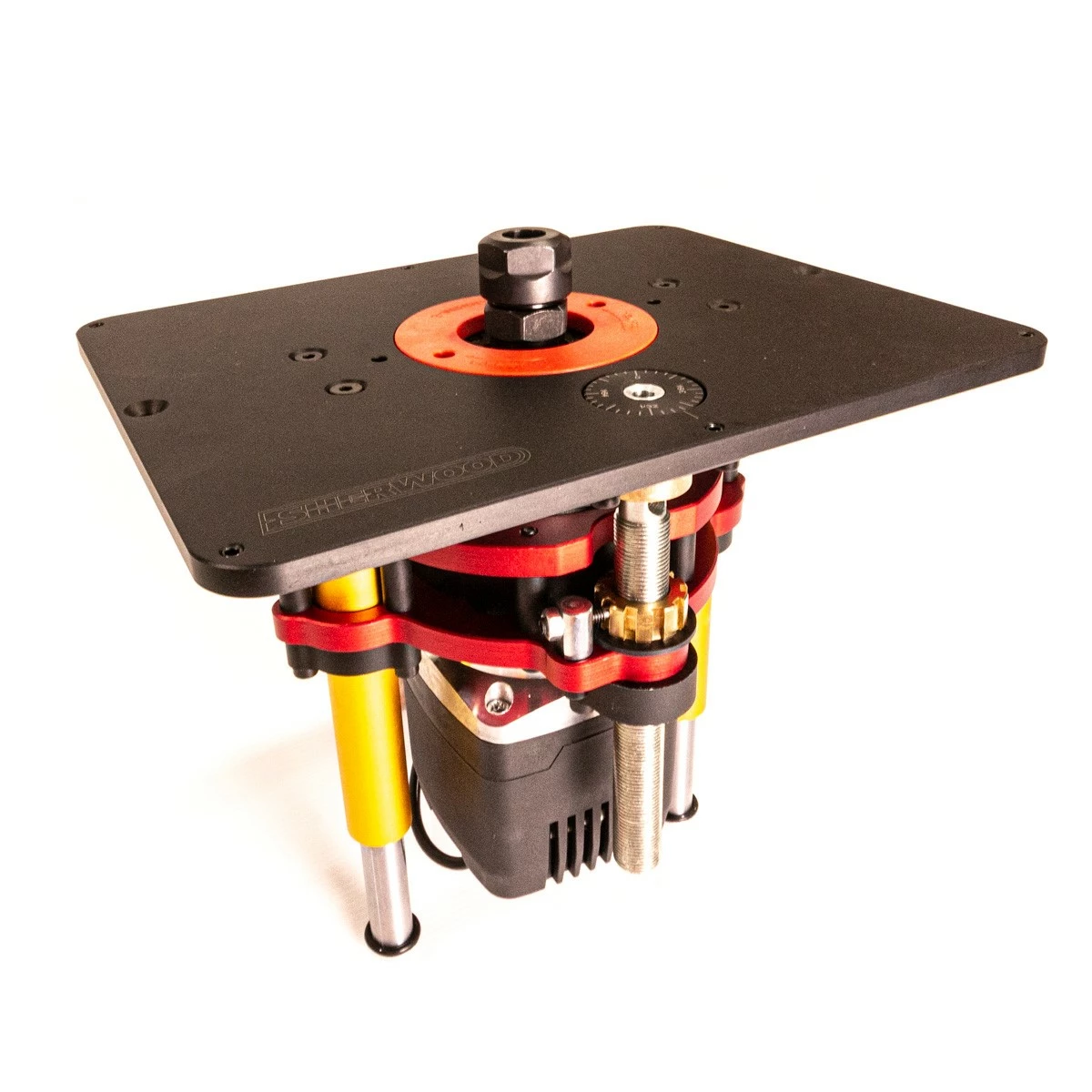

The RLIFT-2 router lift features an anodised Aluminium mounting plate and twin pillar motor cradle with height adjustment screw that is wound by a removable winder handle above the work surface. The kit is completed with a Sherwood SRM-1000 (1.4hp) variable speed router motor. The mounting plate has six levelling screws and two hold-down fixing positions. It accepts a variety of throat insert rings and has a removable start pin which fixes in two positions. This is an affordable yet comprehensive router lift for anyone who wants to get serious about their routing.

What’s in the box

You Sherwood RLIFT-2 Router Lift & Mounting Plate for Round Body Motors includes:

• Sherwood SRM-1000 (1.4hp) variable speed router motor
• Motor collets 1/4 & 1/2in, spanners and manual
• Round body motor bushing
• Anodised Aluminium mounting plate with twin pillar motor cradle
• Throat insert plate with 50mm aperture
• Mounting plate fixing bolts
• Height adjustment winder handle
• Throat insert ring spanner
• Start pin
• Tool kit

The SRM-1000 router motor

Sherwood SRM-1000 Round Body Router Motor is an industrial grade variable speed motor suitable for use in your Sherwood or other compatible router table lifts. This is a 10A motor with a maximum output of 1000W (1.4hp). It is supplied with a 1/4in and 1/2in chuck collet, it will also accept the ER-20 collet system. A little more petite than its big sister the SRM-1800, this 1000W Sherwood Round Body Motor is perfectly suited to benchtop router setups. Use the SRM-1000 SKU to learn more about this motor on the Timbecon website.

The RLIFT-2 round body motor lift

The RLIFT-2 router lift is designed for fixed round bodied motors specifically the Sherwood SRM-1800 and SRM-1000. The round bodied motor slides into the twin clamp holding cradle and is secured by tightening the cradle bolts using the tools supplied. The motor is held very securely, ready to position into your router table. Use the RLIFT-2 SKU to learn more about this router lift on the Timbecon website

Precise height adjustment

The height of the router cradle is adjusted above the table using the supplied height adjustment winder handle. The handle fits into the height adjustment indexing dial that features a precise Imperial gauge. The RLIFT-2 winder has a smooth action with no backlash so you may complete allows you to complete your routing bit settings very accurately.

Sturdy two pillar design

The RLIFT-2 features a very sturdy twin clamp motor cradle and two pillar design. The action of the cradle is guided by the twin bearing guided carriages. With basic maintenance, this router lift won’t ever stick or skew providing you with years of smooth operation.

Mounting plate insert rings

Your router lift can accept a variety of throat insert rings. The insert rings feature a twist lock design, so they are held firmly in position, in line with the surrounding surface. Use the inserts rings to minimise the gap around your router bit to eliminate vibration and increase accuracy.  Insert spanner included. Use the SKU RTPIR-5 on the Timbecon website to learn more.

5-Year warranty

All Sherwood products feature a standard 5-Year limited warranty. No other router lift in its class is more supported than the Sherwood Router Lift & Mounting Plate with Round Body Motor.

Balanced and versatile motor

Sherwood SRM-1000 Round Body Router Motor is an industrial grade variable speed motor suitable for use in your Sherwood or other compatible router table lifts. And using the ER-20 collet system, this router motor will accept a very broad range of router bits. This is a balanced and versatile router motor perfect for use in benchtop router tables.

Save your knees

No matter what version of router lift you use, you now have proper kit to manage your router. Use the height adjustment winder to set the depth smoothly and accurately. Wind the motor up and change the bit above the worktable. Either way you won’t ever need to crouch down to access under the worktable.

Smooth operator

The RLIFT-2 features a very sturdy twin clamping motor cradle and two pillar design. The action of the cradle is guided by the twin bearing guided carriages. With basic maintenance, this router lift won’t ever stick or skew providing you with years of smooth operation. Create the best most detailed work you can with the RLIFT-2-SRM-1000.

Mounting plate insert rings

Your router mounting plate can accept a variety of throat insert rings. Use insert rings to minimise the gap around your router bit to eliminate vibration and increase accuracy. Additional insert rings available use SKU RTPIR-5 on the Timbecon website to learn more.

Mounting plate leveling

The Sherwood RLIFT-2 features six leveling grub screws and two hold fixing bolts. Use the leveling screws to align your router lift perfectly flush with your router table work surface. Fix into position permanently with the two hold down bolts.

Affordable quality

The RLIFT-2-SRM-1000 is a well-made and affordable router lift ensemble. If you are ready to get serious about your routing setup, put the Sherwood Router Lift & Mounting Plate with Round Body Motor in your shopping cart.

Brand	Sherwood
Model SKU	RLIFT-2-SRM-1000
Warranty	5 years
Router Lift	RLIFT-2 (use the model SKU to learn more about the RLIFT-2)
Sherwood variable speed round body motor	SRM-1000 1500W (2.0hp input) 10A 1000W (1.4hp output) 10A 10000-22000rpm (use the model SKU to learn more about the SRM-1000 motor)
Compatible router mounting plate insert rings	RTPIR-5 (use the model SKU to learn more about the insert rings RTPIR-5 )
Overall dimensions	235 x 298 x 280mm H
Mounting plate dimensions	9.5 x 235 x 298mm
Throat ring aperture sizes (diameter)	98mm (plate) 50mm (insert ring) Spanner included
Materials	Anodised Aluminium mounting plate and motor cradle Polished steel riser pillars Steel height adjustment screw Plastic throat insert
