Sherwood Router Lift & Mounting Plate For Round Body Motors

Do you want to make using your router table easy and convenient? Do you want to increase the performance and accuracy of your router table setup? Then check out the RLIFT-2 Router Lift & Mounting Plate for Round Body Motors from Sherwood. An excellent and affordable upgrade for any woodworker’s router table, perfect for the enthusiast or pro woodworker alike.

If you are looking for an affordable high-quality router lift, then check out the Sherwood Router Lift & Mounting Plate for Round Body Motors. This is an affordable and very tidy router lift designed specifically for fixed round body motors.

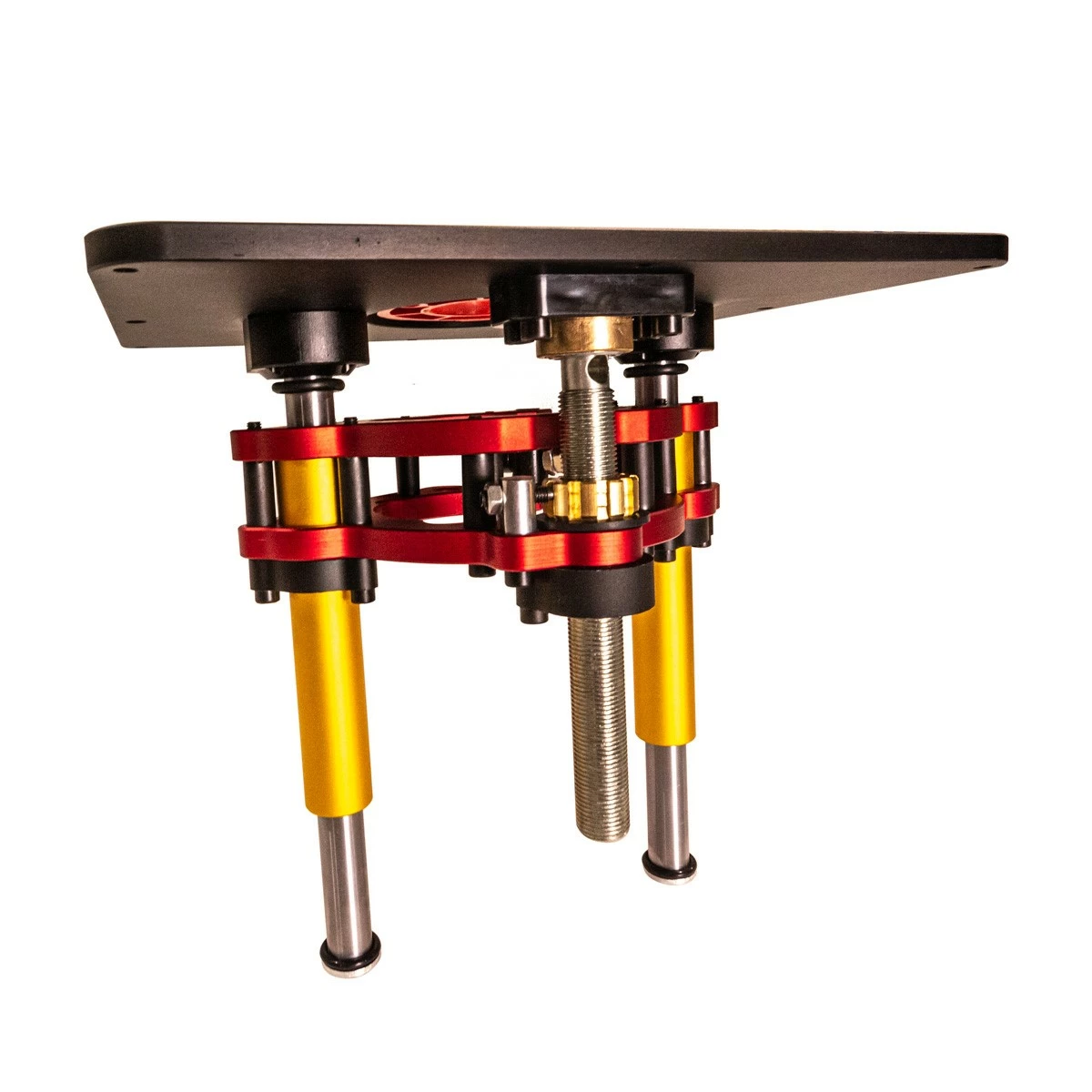

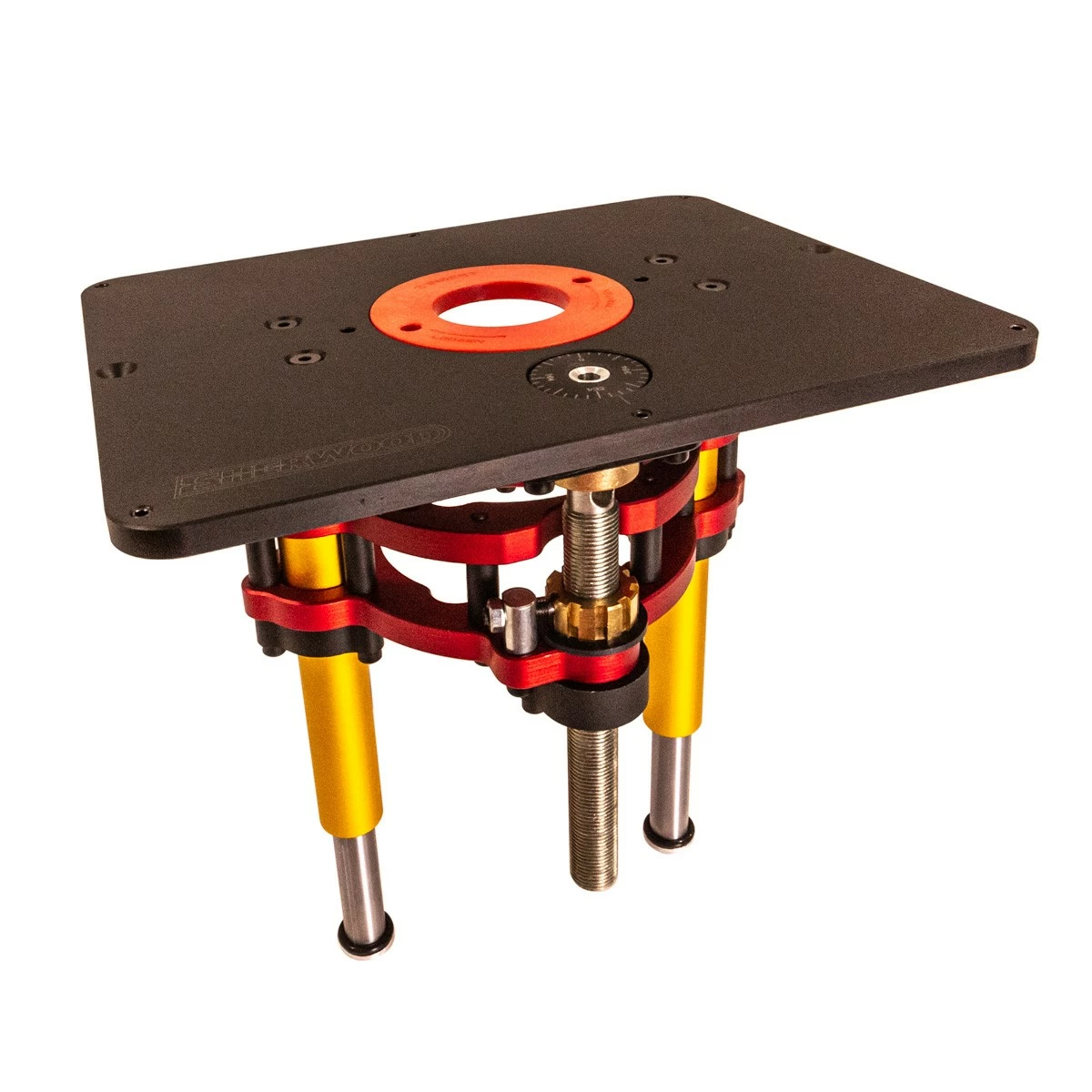

The Sherwood Router Lift & Mounting Plate for Round Body Motor

The RLIFT-2 router lift features an anodised Aluminium mounting plate, and twin pillar motor cradle with height adjustment screw that is wound by a removable winder handle above the work surface. The mounting plate has six levelling screws and two hold-down fixing positions. It accepts a variety of throat insert rings and has a removable start pin which fixes in two positions. This is an affordable yet comprehensive router lift for anyone who wants to get serious about their routing.

What’s in the box

You Sherwood RLIFT-2 Router Lift & Mounting Plate for Round Body Motors includes:

• Anodised Aluminium mounting plate with twin pillar motor cradle
• Throat insert plate with 50mm aperture
• Mounting plate fixing bolts
• Height adjustment winder handle
• Throat insert ring spanner
• Start pin
• Tool kit

For fixed round bodied motors

The RLIFT-2 router lift is designed for fixed round bodied motors specifically the Sherwood SRM-1800 and SRM-1000. Use the product SKU’s to review these motors on the Timbecon website. The round bodied motor slides into the twin clamp holding cradle and is secured by tightening the cradle bolts using the tools supplied. The motor is held very securely and is ready to position into your router table.

Precise height adjustment

The height of the router cradle is adjusted above the table using the supplied height adjustment winder handle. The handle fits into the height adjustment indexing dial that features a precise Imperial gauge. The RLIFT-2 winder has a smooth action with no backlash so you may complete allows you to complete your routing bit settings very accurately.

Sturdy two pillar design

The RLIFT-2 features a very sturdy twin clamp motor cradle and two pillar design. The action of the cradle is guided by the twin bearing guided carriages. With basic maintenance, this router lift won’t ever stick or skew providing you with years of smooth operation.

Mounting plate insert rings

Your router lift can accept a variety of throat insert rings. The insert rings feature a twist lock design, so they are held firmly in position, in line with the surrounding surface. Use the inserts rings to minimise the gap around your router bit to eliminate vibration and increase accuracy.  Insert spanner included. Use the SKU RTPIR-5 on the Timbecon website to learn more.

Mounting plate leveling

The Sherwood RLIFT-2 features six leveling grub screws and two hold fixing bolts. Use the leveling screws to align your router lift perfectly flush with your router table work surface. Fix into position permanently with the two hold down bolts.

5-Year warranty

All Sherwood products feature a standard 5-Year limited warranty. No other router lift in its class is more supported than the Sherwood Router Lift & Mounting Plate for Round Body Motors.

Save your knees

No matter what version of router lift you use, you now have proper kit to manage your router. Use the height adjustment winder to set the depth smoothly and accurately. Wind the motor up and change the bit above the worktable. Either way you won’t ever need to crouch down to access under the worktable.

Motor options

Choose your donk. The RLIFT-2 accepts both the Sherwood SRM-1800 or the Sherwood SRM-1000. The SRM-1800 is a powerful variable speed 1800-watt router motor. All the grunt and finesse you need to complete a broad range of routing tasks. The SRM-1000, a little more petite than its big sister, this 1000W Sherwood round body variable speed motor is perfectly suited to benchtop router setups. Either way, choose the router motor best for your work.

Smooth operator

The RLIFT-2 features a very sturdy twin clamping motor cradle and two pillar design. The action of the cradle is guided by the twin bearing guided carriages. With basic maintenance, this router lift won’t ever stick or skew providing you with years of smooth operation. Create the best most detailed work you can with the RLIFT-2.

Mounting plate insert rings

Your router mounting plate can accept a variety of throat insert rings. Use insert rings to minimise the gap around your router bit to eliminate vibration and increase accuracy. Additional insert rings available use SKU RTPIR-5 on the Timbecon website to learn more.

Affordable quality

The RLIFT-2 is a well-made and affordable router lift. If you are ready to get serious about your routing setup, put the Sherwood Router Lift & Mounting Plate for Round Body Motors in your shopping cart.

Brand	Sherwood
Model SKU	RLIFT-2
Warranty	5 years
Compatible round body motors	SRM-1800 SRM-1000 Both these motors have a 10A plug (use the model SKU’s  to learn more about the compatible motors)
Compatible router mounting plate insert rings	RTPIR-5 (use the model SKU to learn more about the insert rings RTPIR-5 )
Overall dimensions	235 x 298 x 280mm H
Mounting plate dimensions	9.5 x 235 x 298mm
Throat ring aperture sizes (diameter)	98mm (plate) 50mm (insert ring) Spanner included
Materials	Anodised Aluminium mounting plate and motor cradle Polished steel riser pillars Steel height adjustment screw Plastic throat insert
