Sherwood Phenolic Router Table With Anodised Aluminium Mounting Plate

A woodworker’s workshop is not complete without a router table. Sherwood now offers you an affordable range of free-standing router tables with a range of accessories. Sherwood router tables are perfect for both the enthusiast and pro woodworker alike.

A well-equipped router table is an invaluable addition to any woodworker’s workshop. And Sherwood offers you the most affordable and comprehensive range in Australia.

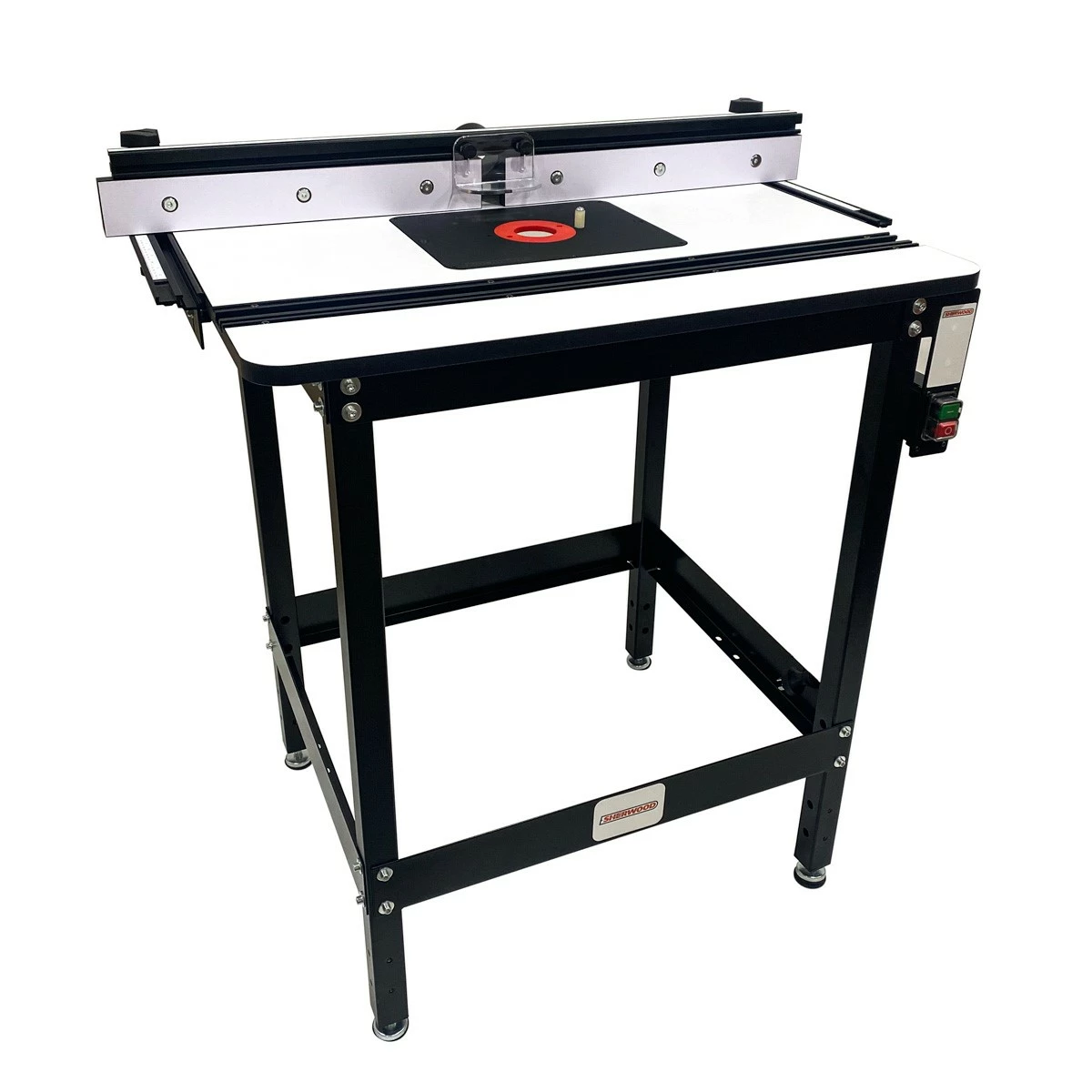

The Sherwood Phenolic Router Table with Anodised Aluminium Mounting Plate

Featuring a phenolic worktable, metal stand, remote switch, a handy fence setup and an Aluminium router mounting plate – this Sherwood Phenolic Router Table is comprehensive and affordable. And because all Sherwood products are backed by a 5-year warranty, you can look forward to long stress-free days of guaranteed routing.

What’s in the kit

• Anodised Aluminium router mounting plate – undrilled with start pin
• 2 x router mounting plate removable insert rings with spanner
• Router installation centring pin
• 800 x 600 phenolic router table worktop with twin slot embedded mitre track
• Router table fence with 2 x T-Tracks and faceplate packing rods
• Fence also features cutter guard, adjustable throat, measuring tape and 63mm dust port
• Remote switch stop
• Metal router stand with levelling feet

Mounting plate for any router

The Anodised Aluminium Mounting Plate (RTAMP-6) allows you to attach your choice of handheld plunge router. The mounting plate is supplied undrilled. Use the router installation centring pin and plastic base of your router to set out the positions of the fixing screws. Drill and countersink for a secure fit. The mounting plate is supplied with six levelling grub screws so you may align the plate with the surface of the worktable.

Please note – when screwing your router to the mounting plate, it is recommended you remove the plastic router base for a firmer fix. In some cases, you may need to purchase longer fixing screws. Contact your local bolt shop for the suitable screws.

Mounting plate insert rings

Your router mounting plate can accept a variety of throat insert rings. The insert rings feature a twist lock design, so they are held firmly in position, in line with the surrounding surface. Use the insert rings to minimise the gap around your router bit to eliminate vibration and increase accuracy. Insert spanner included. Use the SKU RTPIR-5 on the Timbecon website to learn more. The RTAMP-6 mounting plate insert rings are also compatible with Milescraft Metal Bushing Sets, read on to learn more.

Handy router fence

This free-standing router table setup has a very handy fence. Featuring 2 x T-Tracks for attaching accessories, measuring tape, a 63mm dust port and blade guard. Also included are fence faceplate packing rods, use these to pack the faceplates out and turn your router into a jointer. The fence attaches to the worktable via two outrigger guides both with measuring gauges.

Phenolic worktable

What’s special about a Phenolic worktable? Two things, density and durability. This worktable is dense and heavy meaning it won’t vibrate and won’t budge when you lean on it. It is also durable. Resistant to abrasion, heat, chemicals and anything else you can throw at it. If you were working on Mars, you would use a Phenolic worktable.

5-Year warranty

All Sherwood products feature a standard 5-Year limited warranty. No other router table setup in its class is more supported than the Sherwood Phenolic Router Table with Aluminium Mounting Plate.

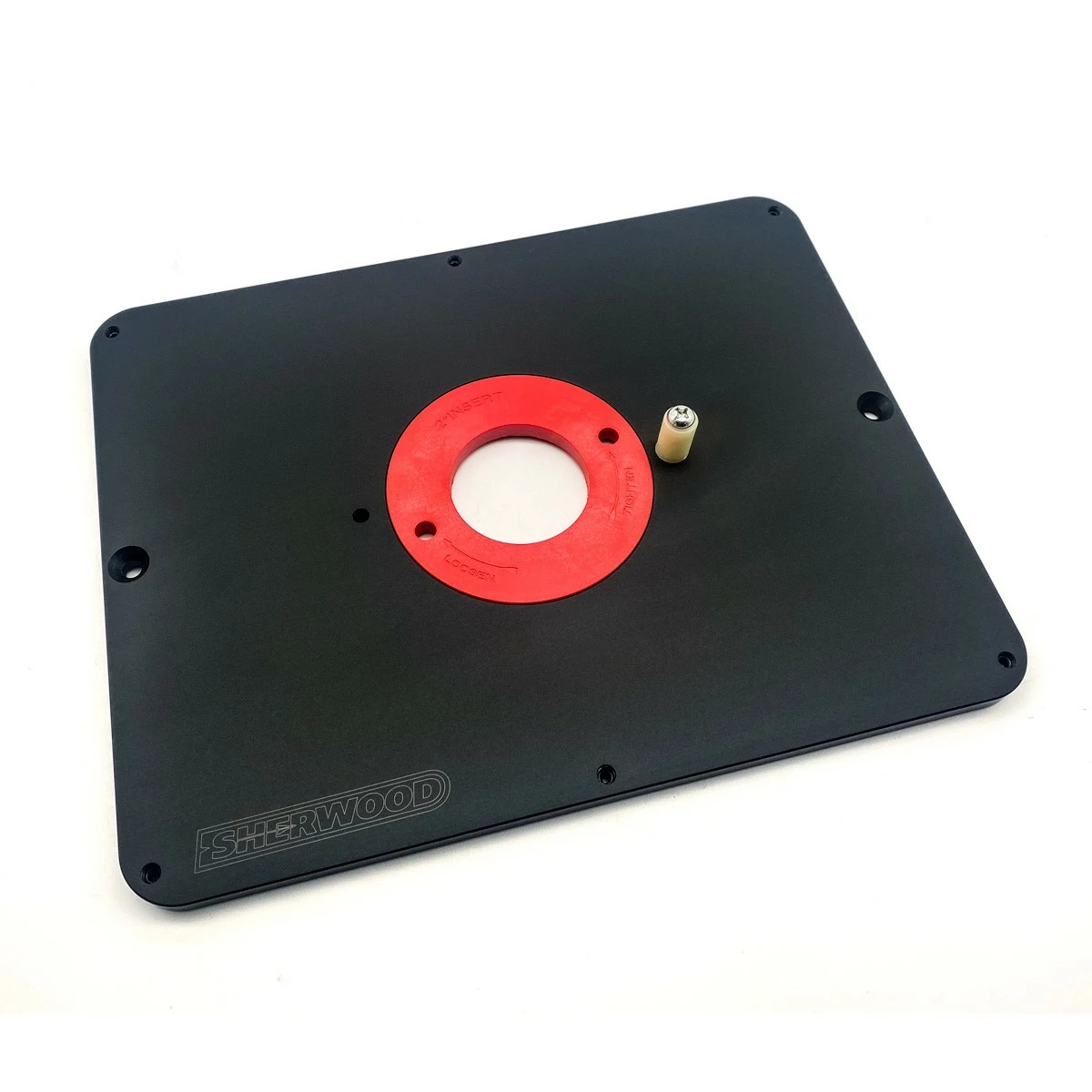

Anodised Aluminium router mounting plate

Attach any type of hand-held router by drilling the holes yourself. The plate features leveling screws and fixing screws. And a removable start pin that fixes in two positions. This is a simple yet comprehensive router mounting plate. Use the SKU RTAMP-6 to learn more about this product on the Timbecon website.

Attaching your router to the mounting plate

Your RTAMP-6 Aluminium router plate is supplied with a router centring pin. Use this pin to centre your router on the underside the plate to mark out and drill the screw fixing holes in five easy steps:

• Insert the centring pin into your router
• Insert the centring pin insert throat plate into the mounting plate
• Place the router on the underside of the base plate, aligning the centring pin into the insert plate
• Scribe out the position of the router base
• Remove the plastic router base from your router and use it to mark out and drill the holes

Watch the video to learn more about installing your router.

Mounting plate insert rings

Your router mounting plate can accept a variety of throat insert rings. Use insert rings to minimise the gap around your router bit to eliminate vibration and increase accuracy. Additional insert rings available. Use the SKU RTPIR-5 on the Timbecon website to learn more.

Milescraft Metal Bushing Set

A cool trick is that RTAMP-6 is compatible with Milescraft Metal Bushing Sets. Available as either a Metric set MC-1278, or as an Imperial set MC-1228, these bushes are invaluable accessory for your router setup. Use to complete template routing, dovetailing, sign making and inlay routing. Bushing sizes include:

MC-1228 – 5/16in, 3/8in, 7/16in, 1/2in, 5/8in, 3/4in and 51/64in.

MC-1278 – 10mm, 13mm, 17mm, 20mm, 24mm, 27mm and 30mm

Use the product SKU’s to read more about these Milescraft bushing sets on the Timbecon website. Expand the versatility of your router table.

Twin track mitre guide

The phenolic top worktable features an embedded twin slot mitre track. One slot for a standard mitre guide, one T-Track for additional accessories such as feather boards.

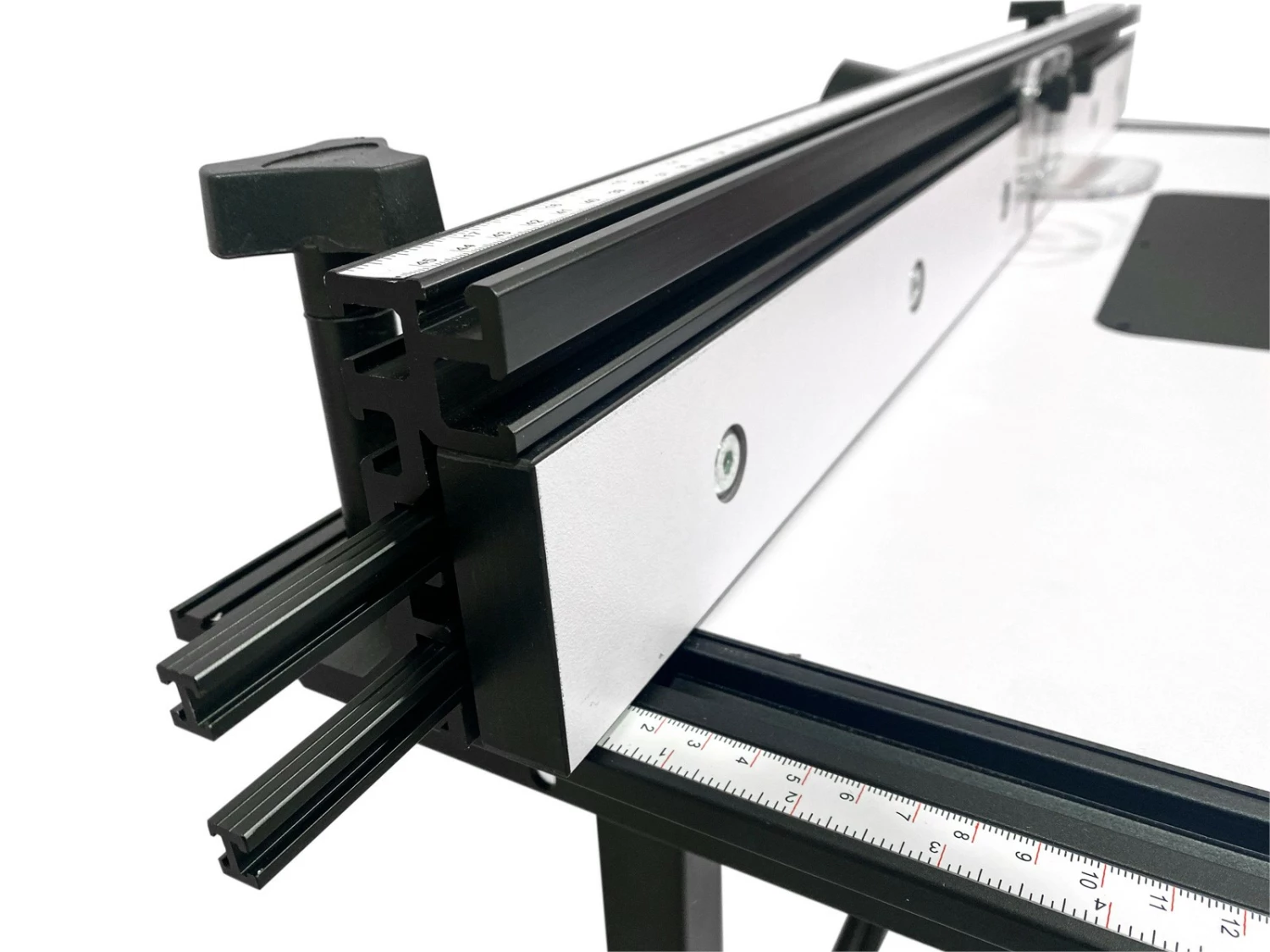

Turn your router fence into a jointer

Your router fence is now even more versatile. Included with your fence are 2 x fence faceplate packing rods. Slide these in behind the outfeed faceplate to pack them out turning your router into a jointer.

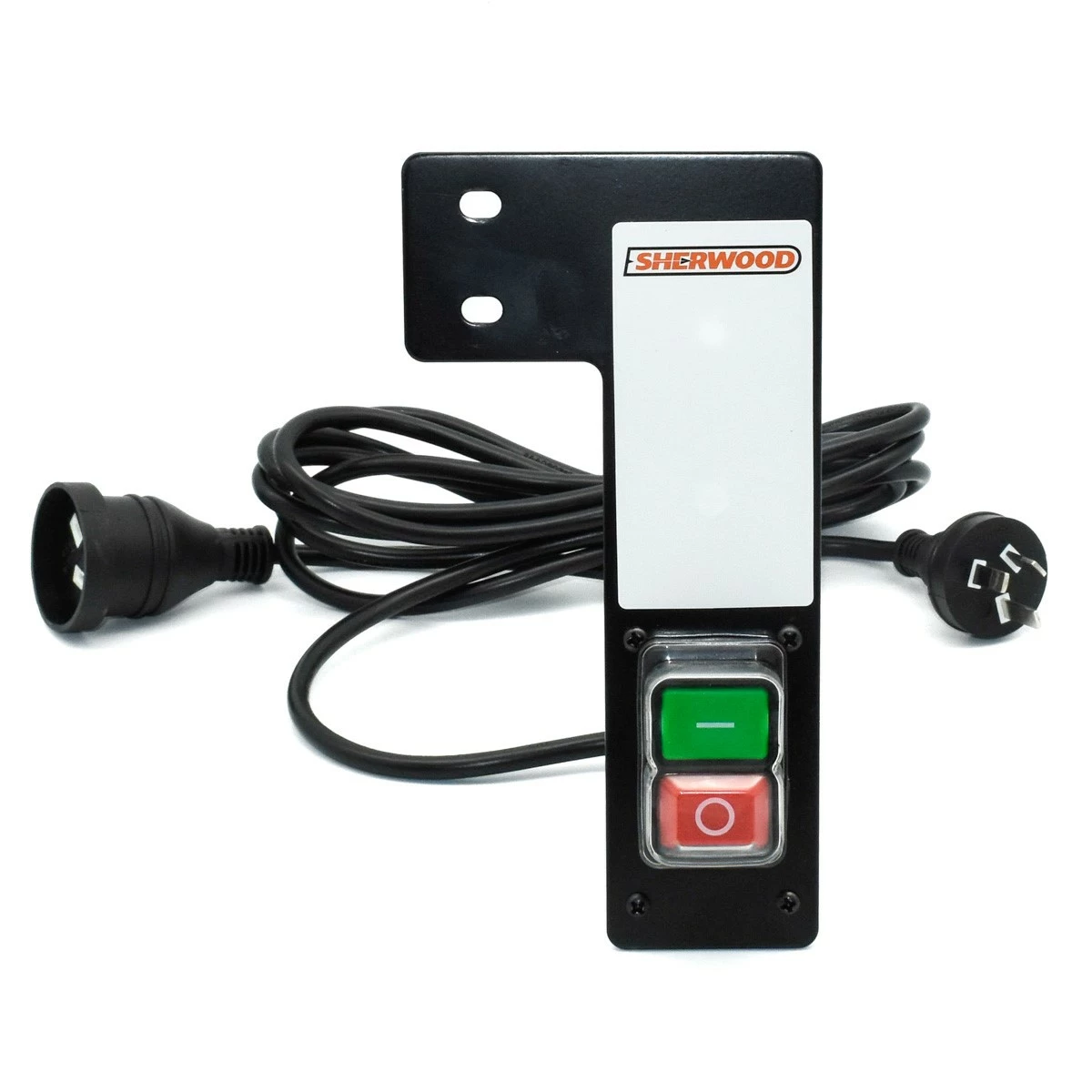

Remote switch

Plug your router motor into the switch, plug the switch into the workshop power point. You know have a safety on/off switch right at your fingertips. Cut the power super-fast if you get into trouble. The days of walking around or fiddling under the worksurface for the switch are over.

Dust port

The router fence features a 63mm dust port. Attached to your shop vac and reduce dust in your workshop.

Robust construction

This router table affordable and robust. The sturdy metal base frame means your router table is built for work. Enjoy years of vibration free use from this router setup.

Brand	Sherwood
Model SKU’s	RT-800-K3
Warranty	5 years
Aluminium Router Mounting Plate	RTAMP-6 (use the model SKU to learn more about the RTAMP-6)
Compatible router mounting plate insert rings	RTPIR-5 (use the model SKU to learn more about the insert rings RTPIR-5)
Milescraft Metal Bushing Sets – not included	Metric set MC-1278 Imperial set MC-1228 (use the model SKU’s to learn more about these sets)
Overall dimensions	600 x 930 x 980mm H
Worktable dimensions	20 x 600 x 800mm
Worktable height	890mm
Fence dimensions	95 x 915mm
Fence travel	200mm
Fence dust port	63mm
Distance from spindle to front edge of table	330mm
Worktable mitre slot dimensions	1 x 9.5 x 19mm 1 x 7 x 9mm
Fence T-Track dimensions x 2	7 x 8.5 7 x 14mm
Router insert cut-out	235 x 298mm
Throat ring aperture sizes (diameter)	98mm (plate) 51mm throat (insert ring) 31mm throat (insert ring) 13mm throat (sub-insert ring for router installation pin) Router installation centring pin Spanner included
