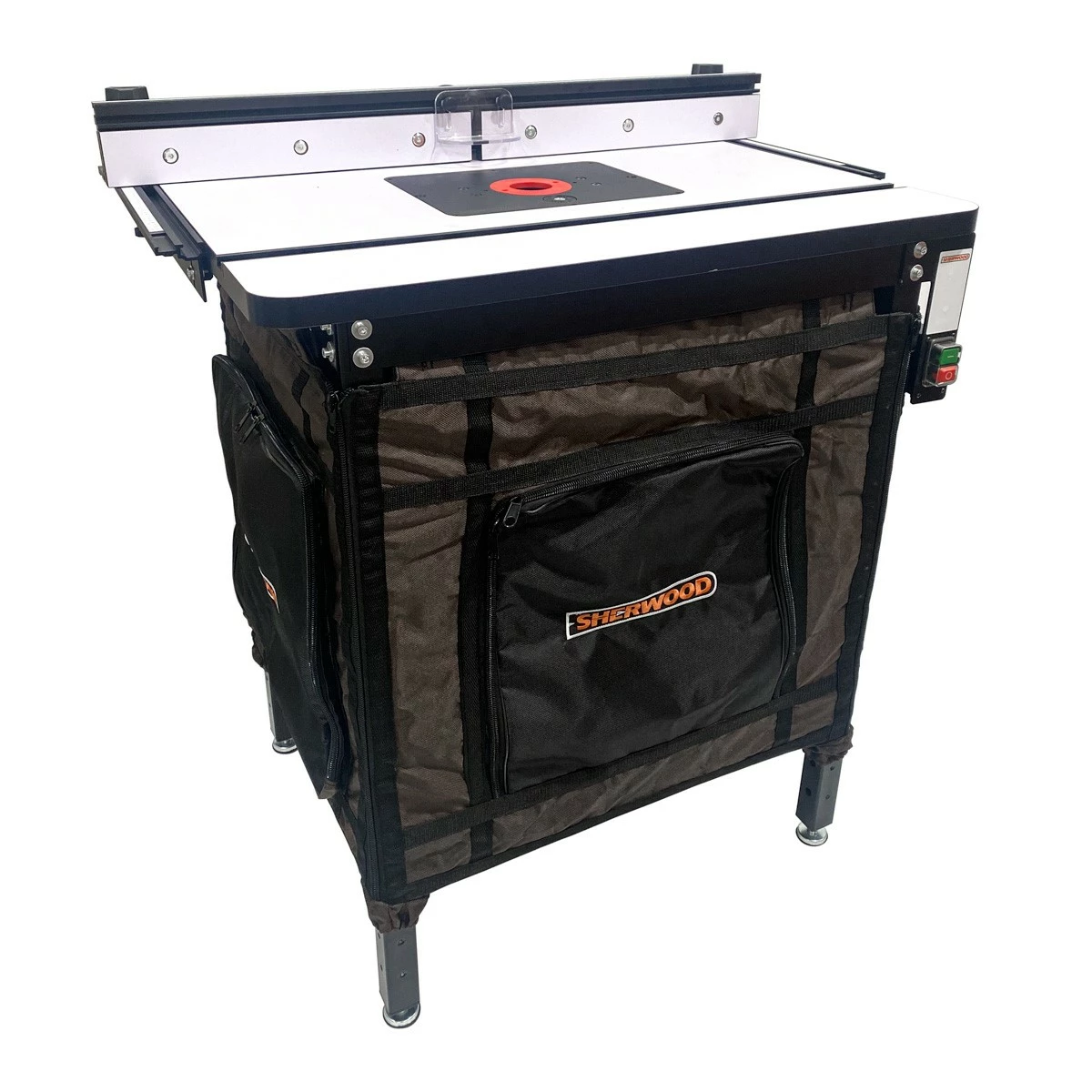

Sherwood Laminated MDF Router Table With Router Lift And SRM-1800 Round Body Motor
Original price was: $332.00.$99.99Current price is: $99.99.
- Protect Your Wallet with Safe Payments
- Safe and Secure Payments, Always
- Prompt service, every time.
- Safeguard Your Shopping Experience
A woodworker’s workshop is not complete without a router table. Sherwood now offers you an affordable range of free-standing router tables with a range of accessories. Sherwood router tables are perfect for both the enthusiast and pro woodworker alike.
A well-equipped router table is an invaluable addition to any woodworker’s workshop. And Sherwood offers you the most affordable and comprehensive range in Australia.
The Sherwood Laminated MDF Router Table with Router Lift and SRM-1800 Round Body Motor
Featuring a laminated MDF worktable, RLIFT-2 round body motor router lift with anodised Aluminium mounting plate, Sherwood SRM-1800 (2.4hp) variable speed motor, metal stand, remote switch, a handy fence setup and a fabric dust collection box – this Sherwood Laminated MDF Router Table is comprehensive and affordable. And because all Sherwood products are backed by a 5-year warranty, you can look forward to long stress-free days of guaranteed routing.
What’s in the kit
- Sherwood SRM-1800 (2.4hp) variable speed router motor
- Motor collets 1/4 & 1/2in, spanners and manual
- Round body motor bushing
- Anodised Aluminium mounting plate with twin pillar motor cradle
- Mounting plate fixing bolts
- Height adjustment winder handle
- Throat insert ring spanner
- Start pin and tool kit
- 800 x 600 laminated MDF router table worktop with embedded mitre track
- Router table fence with 2 x T-Tracks and faceplate backing rods
- Fence also features cutter guard, adjustable throat, measuring tape and 63mm dust port
- Fabric dust collection box with two dust ports
- Remote switch with safety stop
- Metal router stand with levelling feet
The SRM-1800 router motor
Sherwood SRM-1800 Round Body Router Motor is an industrial grade variable speed motor suitable for use in your Sherwood or other compatible router table lifts. This is a 10A motor with a maximum output of 1800W (2.4hp). It is supplied with a 1/4in and 1/2in chuck collet, it will also accept the ER-20 collet system. Perfect for all heavy-duty router table applications this Sherwood Round Body Motor is perfectly suited to this router setup. Use the SRM-1800 SKU to learn more about this motor on the Timbecon website.

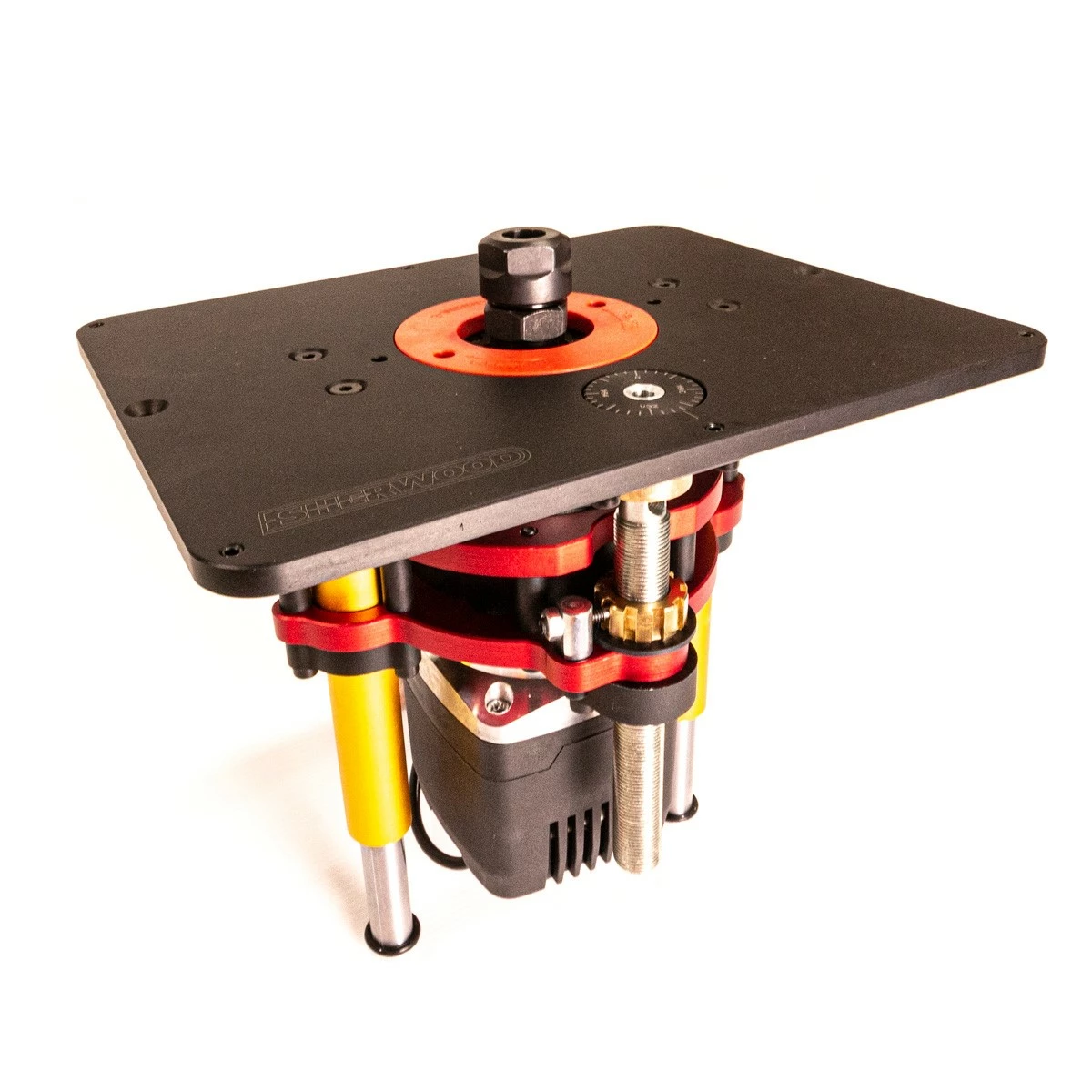

The RLIFT-2 round body motor lift
The RLIFT-2 router lift is designed for fixed round bodied motors specifically the Sherwood SRM-1800 and SRM-1000. The round bodied motor slides into the twin clamp holding cradle and is secured by tightening the cradle bolts using the tools supplied. The motor is held very securely, ready to position into your router table. Use the RLIFT-2 SKU to learn more about this router lift on the Timbecon website.
Precise height adjustment
The height of the router cradle is adjusted above the table using the supplied height adjustment winder handle. The handle fits into the height adjustment indexing dial that features a precise Imperial gauge. The RLIFT-2 winder has a smooth action with no backlash so you may complete allows you to complete your routing bit settings very accurately.
Sturdy two pillar design
The RLIFT-2 features a very sturdy twin clamp motor cradle and two pillar design. The action of the cradle is guided by the twin bearing guided carriages. With basic maintenance, this router lift won’t ever stick or skew providing you with years of smooth operation.
Mounting plate insert rings
Your router mounting plate can accept a variety of throat insert rings. The insert rings feature a twist lock design, so they are held firmly in position, in line with the surrounding surface. Use the insert rings to minimise the gap around your router bit to eliminate vibration and increase accuracy. Insert spanner included. Use the SKU RTPIR-5 on the Timbecon website to learn more. The RTAMP-6 mounting plate insert rings are also compatible with Milescraft Metal Bushing Sets, read on to learn more.
Handy router fence
This free-standing router has a very handy fence. Featuring 2 x T-Tracks for attaching accessories, measuring tape, a 63mm dust port and blade guard. Also included are fence faceplate packing rods, use these to pack the faceplates out and turn your router into a jointer. The fence attaches to the worktable via two outrigger guides both with measuring gauges.
Fabric dust collection box
The fabric dust collection box with two dust ports ensures you enjoy a low dust routing experience.
5-Year warranty
All Sherwood products feature a standard 5-Year limited warranty. No other router table setup in its class is more supported than the Sherwood Laminated MDF Router Table with Router Lift and Round Body Motor.
Balanced and versatile motor
Sherwood SRM-1000 Round Body Router Motor is an industrial grade variable speed motor suitable for use in your Sherwood or other compatible router table lifts. And using the ER-20 collet system, this router motor will accept a very broad range of router bits. This is a balanced and versatile router motor perfect for use in benchtop router tables.
Save your knees
No matter what version of router lift you use, you now have proper kit to manage your router. Use the height adjustment winder to set the depth smoothly and accurately. Wind the motor up and change the bit above the worktable. Either way you won’t ever need to crouch down to access under the worktable.
Smooth operator
The RLIFT-2 features a very sturdy twin clamping motor cradle and two pillar design. The action of the cradle is guided by the twin bearing guided carriages. With basic maintenance, this router lift won’t ever stick or skew providing you with years of smooth operation. Create the best most detailed work you can with the RLIFT-2-SRM-1000.
Mounting plate insert rings
Your router mounting plate can accept a variety of throat insert rings. Use insert rings to minimise the gap around your router bit to eliminate vibration and increase accuracy. Additional insert rings available use SKU RTPIR-5 on the Timbecon website to learn more.
Mounting plate leveling
The Sherwood RLIFT-2 features six leveling grub screws and two hold fixing bolts. Use the leveling screws to align your router lift perfectly flush with your router table work surface. Fix into position permanently with the two hold down bolts.
Mounting plate insert rings
Your router mounting plate can accept a variety of throat insert rings. Use insert rings to minimise the gap around your router bit to eliminate vibration and increase accuracy. Additional insert rings available. Use the SKU RTPIR-5 on the Timbecon website to learn more.
Worktable mitre track
Your benchtop router worktable includes a very handy mitre track. Use a standard mitre guide to cut across your cutter when machining.

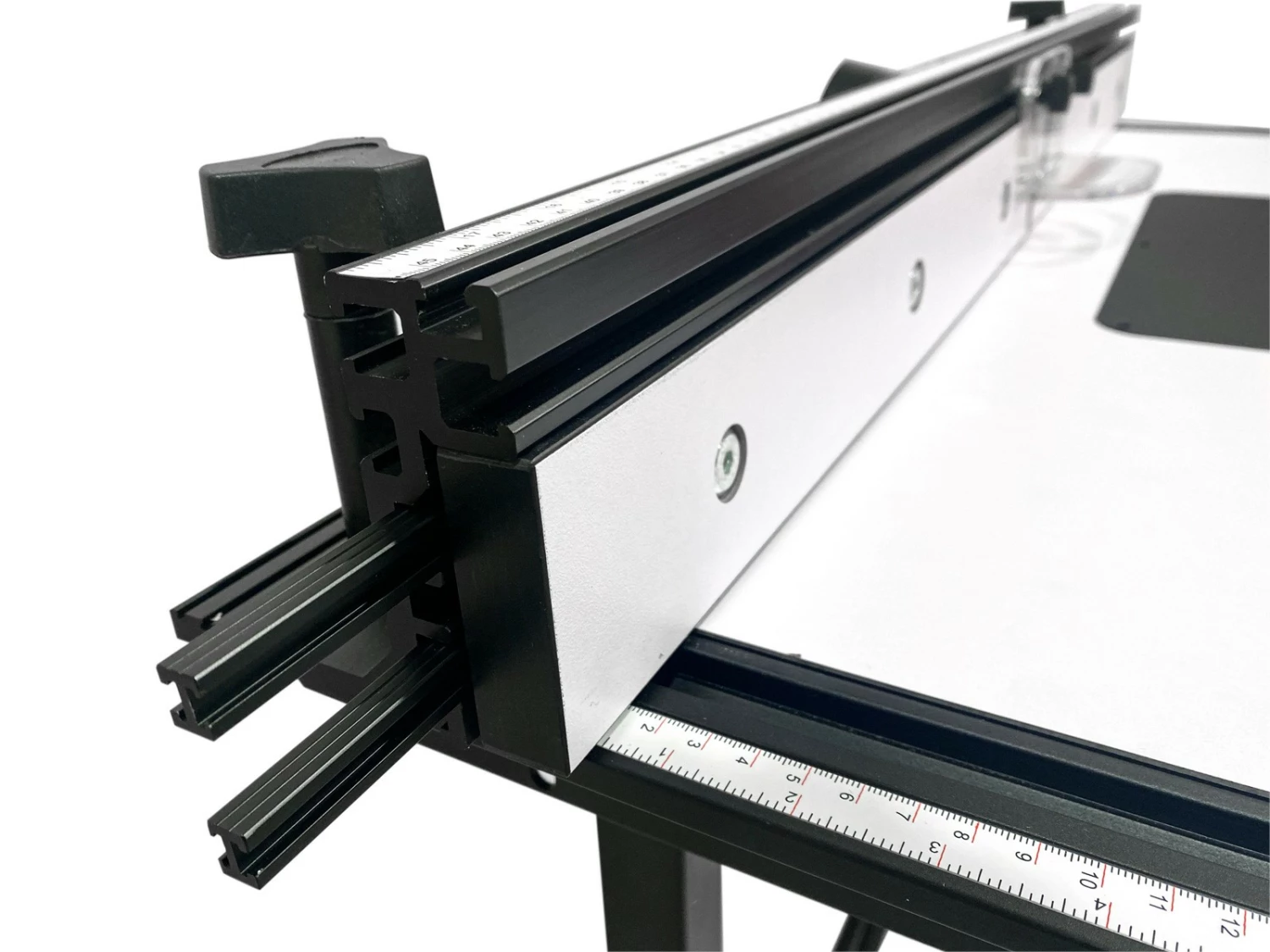

Turn your router fence into a jointer
Your router fence is now even more versatile. Included with your fence are 2 x fence faceplate packing rods. Slide these in behind the outfeed faceplate to pack them out turning your router into a jointer.

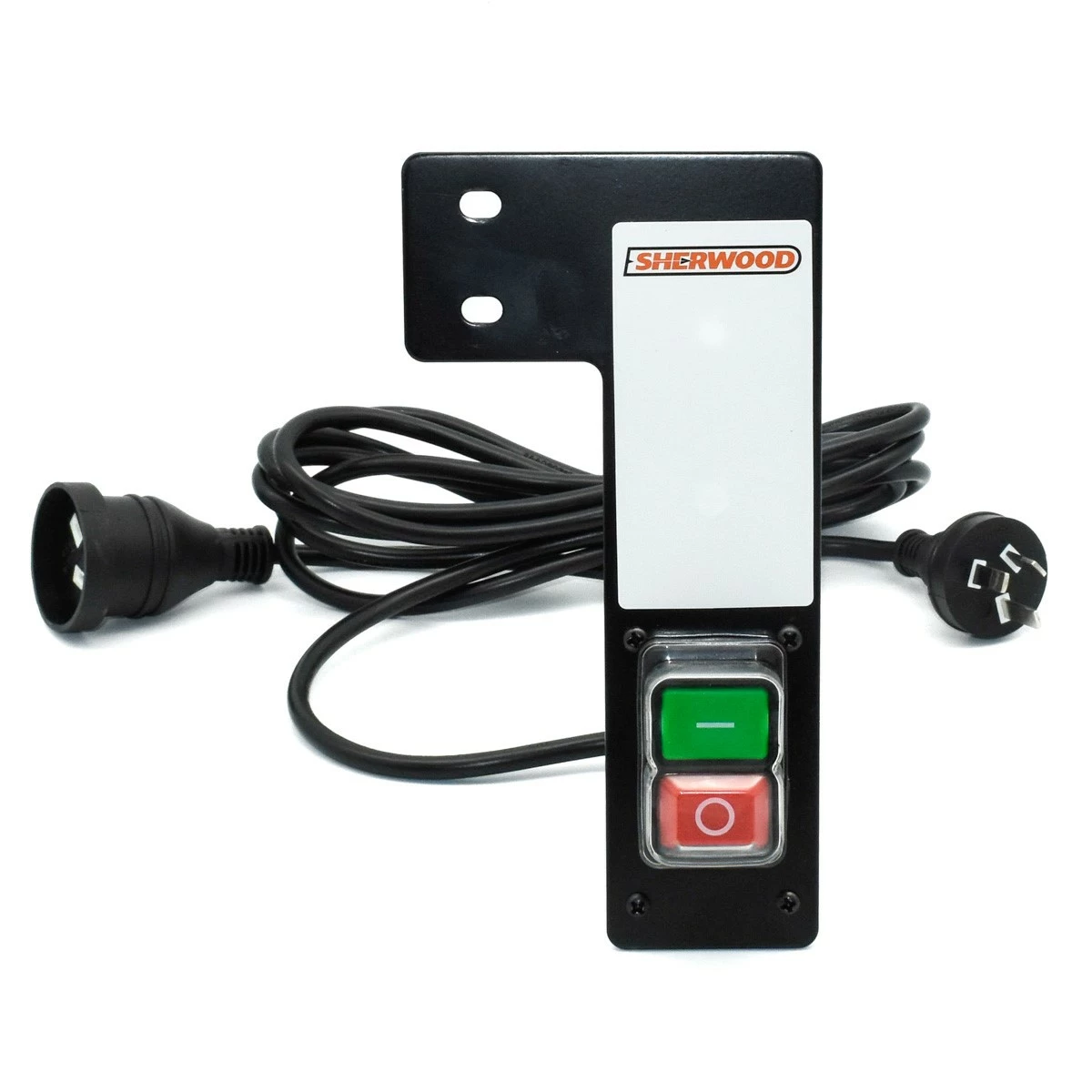

Remote switch
Plug your router motor into the switch, plug the switch into the workshop power point. You know have a safety on/off switch right at your fingertips. Cut the power super-fast if you get into trouble. The days of walking around or fiddling under the worksurface for the switch are over.
Fabric dust collection box
The fabric dust collection box’s two dust ports along with the router fences dust port controls dust in your workshop. Attach to your dust collector and enjoy a low dust routing experience.
Robust construction
This router table affordable and robust. The sturdy metal base frame means your router table is built for work. Enjoy years of vibration free use from this router setup.
| Brand | Sherwood |
| Model SKU’s | RT-800-K6-SRM-1000 |
| Warranty | 5 years |
| Router Lift | RLIFT-2 (use the model SKU to learn more about the RLIFT-2) |
| Sherwood variable speed round body motor
| SRM-1000 1500W (2.0hp input) 10A 1000W (1.4hp output) 10A 10000-22000rpm (use the model SKU to learn more about the SRM-1000 motor) |
| Compatible router mounting plate insert rings | RTPIR-5 (use the model SKU to learn more about the insert rings RTPIR-5 ) |
| Overall dimensions | 600 x 930 x 1000mm H |
| Worktable dimensions | 20 x 600 x 800mm |
| Worktable height | 890mm |
| Fence dimensions | 95 x 915mm |
| Fence travel | 280mm |
| Distance from spindle to front edge of table | 330mm |
| Worktable mitre slot dimensions | 1 x 9.5 x 19mm |
| Fence T-Track dimensions x 2 | 7 x 8.5 7 x 14mm |
| Router insert cut-out | 235 x 298mm |
| Dust collection | Fabric dust collect box with 1 x 63 & 1 x 102mm dust ports Fence features 63mm dust port |
| Throat ring aperture sizes (diameter) | 98mm (plate) 50mm (insert ring) Spanner included |
| Materials | Anodised Aluminium mounting plate and motor cradle Polished steel riser pillars Steel height adjustment screw Plastic throat insert |
