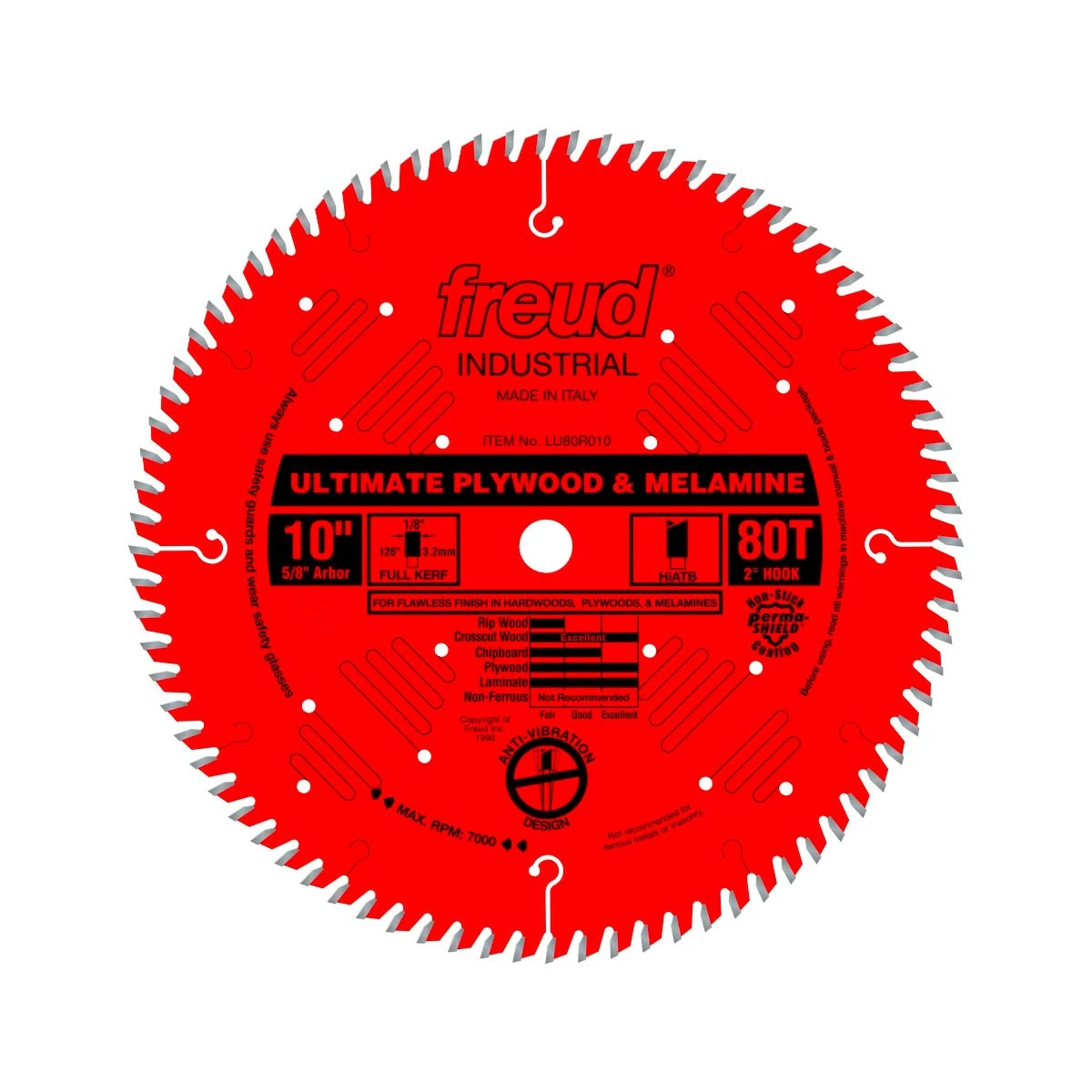

Freud Ultimate Plywood & Melamine Circular Saw Blades

Freud Ultimate Plywood & Melamine Blades deliver beautiful, chip free edges in veneered plywoods, fine mouldings, melamine, laminates, and when crosscutting solid woods. They are the perfect saw blade for both enthusiast and professional makers working with laminates and solid timber.

Freud’s unique tooth design and laser-cut anti-vibration reeds lead to a high precision cut with a perfect finish in hardwoods, plywoods and melamine laminates.

The high-angle ATB tooth grind is perfectly designed to slice cleanly, leaving a splinter-free cut.

Freud-made TiCo Hi-Density Carbide coupled with the Perma-SHIELD coating gives these blades the longest run time of any blade in their class.

Applications

Freud Ultimate Plywood & Melamine Blades are ideal for cuts in veneered plywood and melamine, and crosscuts in hardwood ¼” (6.4mm) to 1-5/8” (41.2mm) in depth. They are ideal for solid timber, and great in composite materials such as plywood and chipboard as well.

TiCo Carbide teeth

These Freud sawblades feature TiCo Carbide teeth. A specially formulated highly compact Titanium Cobalt Carbide, engineered and manufactured by Freud that provides a sharper edge and flawless finish with a dramatically longer life.

Perma-SHIELD coating

This professional quality saw blade features a non-stick coating formulation that withstands the toughest of applications. It provides thermal insulation, protects from corrosion and eliminates resin build up together reducing downtime for cleaning.

Why Freud

Freud Tools manufacture an extensive range of precise and high-tech circular saw blades. They are the largest manufacturer of high-quality saw blades worldwide setting the highest standard in the industry. Quality that is assured by engineering brilliance and manufacturing know-how.

Freud set themselves apart through their in-house Tungsten Carbide production. Improved blade quality with tip thicknesses up to 30% greater than your standard blade allowing for multiple sharpening’s that in turn extend the product lifetime.

The special tri-metal alloy consisting of copper wrapped between layers of silver allows the Carbide tips to withstand extreme impact, for maximum shock resistant durability.

The high strength laser cut steel extends the durability of the blade and a tensioning process guarantees maximum precision. Anti-vibration slots are laser cut with Freuds very own innovative technology.

Premium TiCo HI-Density carbide crosscutting blend for maximum performance.

Laser-cut anti-vibration slots drastically reduce vibration and sideways movement in the cut extending blade life and giving a crisp, splinter-free flawless finish.

Perma-Shield Non-stick coating reduces blade drag, protects the blade from corrosion and pitch build-up.

Made in Italy.

	LU-80-MR-010	LU-80-MR-012
Diameter	10” (254mm)	12” (305mm)
Bore	5/8” (15.9mm)	1” (25.4mm)
Kerf	1/8” (3.2mm)	1/8” (3.2mm)
Tooth Count	80	96
Tooth Grind	Hi-ATB	Hi-ATB
Hook Angle	2°	2°
