Freud Spiral Roughing Upcut Triple Flute CNC Router Bits

Freud CNC solid carbide fluted router bits set the standard worldwide for routing wood, plastics, composite panel and non-ferrous materials. Freud CNC router bits are for the enthusiast and professional maker alike.

Available in a range of cutting diameters and shanks, choose the preferred option from the drop down menu

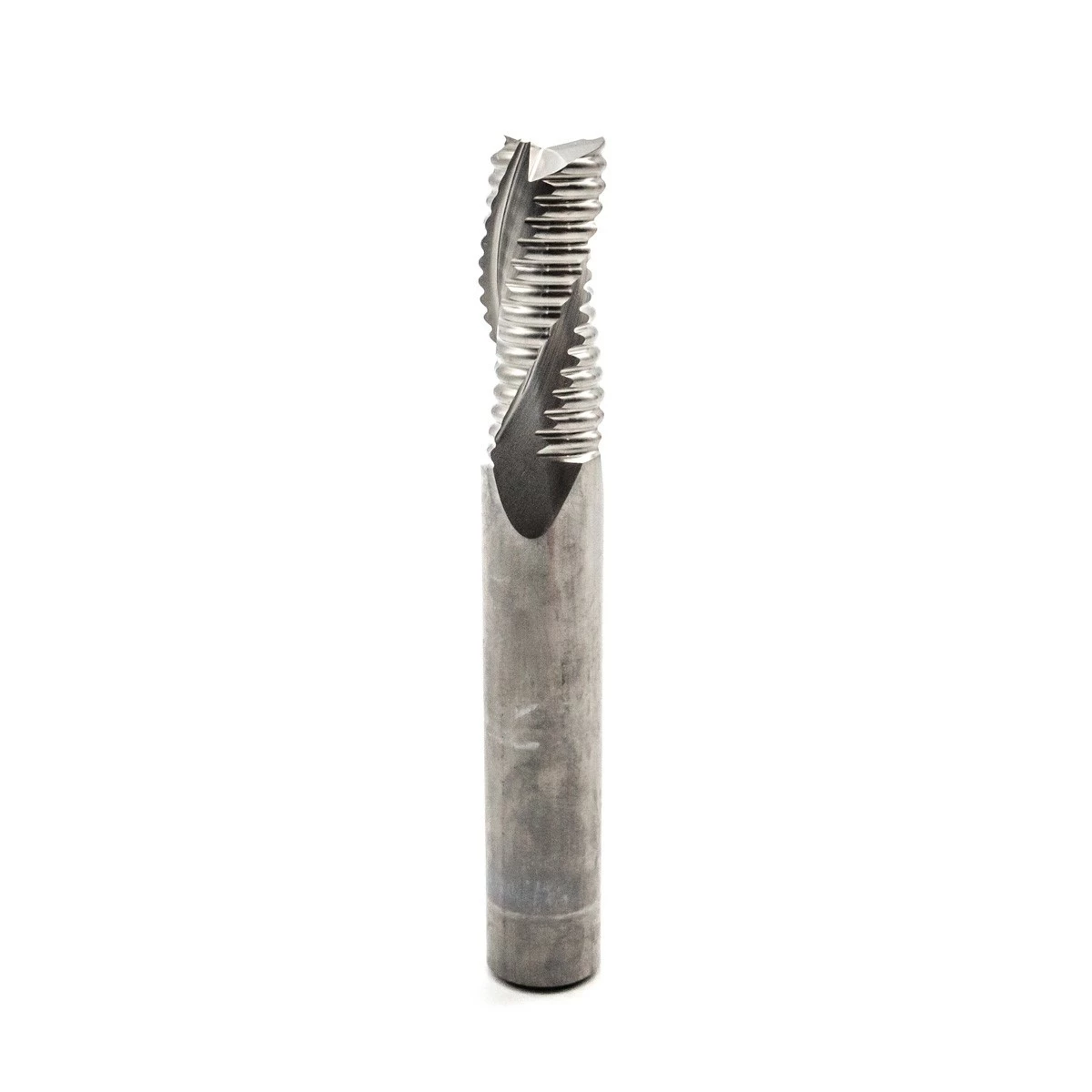

Freud Spiral Roughing Upcut Triple Flute CNC Router Bits

Designed with serrated blades for low heat, fast CNC routing with large gullet space for high chips removal. Suitable for sizing, grooving and plunging with a perfect finishing on laminates, wood composites and solid wood. Features upcut helix for good chip flow and upward chip removal for best finish on the lower side of the panel.

Materials

• Hardwood & softwoods
• MDF
• Chipboard
• Composites

Who is Freud

An industry leader for more than 50 years, Freud is the only manufacturer of woodworking tools in the world that produces its own MicroGrain Carbide with titanium, called TiCo™, a high-density combination of titanium and cobalt. By producing their own carbide, Freud has the unique ability to formulate each tool for each specific application, thereby maximizing the cutting life and performance of the tool. Freud’s full line of high-quality woodworking tools includes saw blades, router bits, shaper cutters, and more.

Product Code	Shank Size	Cutting Flutes	Cutting Direction	Cutting Diameter	Cutting Depth
SCH-3-URN-524-R	1/2in	Triple	Upcut	12.7mm	30mm
SCH-3-URN-526-R	1/2in	Triple	Upcut	12.7mm	42mm
